152M-6/4-1/2A
(HU) Hollanderes gyűrűs könyök csatlakozó, rövid
| For tube diameter: | Ø6/4 |
|---|---|
| Kivitel: | menetes |
| Material: | Nickel-plated brass |
| Material seals: | Aluminum |
| Medium: | Compressed air, liquids |
| Operating pressure: | 0…25 bar |
| Port size / Connection: | G 1/2" |
| Port size | A: | Ø6 |
| Port size | B: | Ø4 |
| Pressure range: | 0…25 bar |
| Temperature range: | -20°C…+120°C |
152M-6/4-1/2A
(HU) Hollanderes gyűrűs könyök csatlakozó, rövid
Please register here to access downloads for data sheets and 3D models.

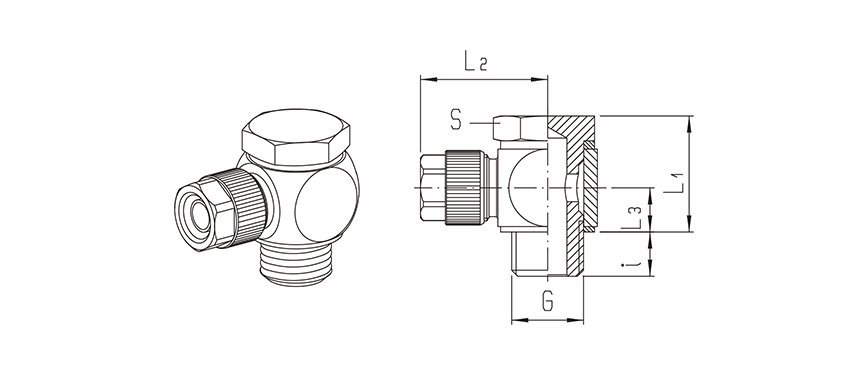

| Typnummer | Schlauchgröße | Anschlussgröße G | i | L1 | L2 | L3 | S |
|---|---|---|---|---|---|---|---|
| 152M-4,3/3S-M5N | 4,3/3 | M 5 | 4 | 14 | 15,5 | 5 | 8 |
| 152M-4,3/3S-1/8A | 4,3/3 | G 1/8" | 6,5 | 20,5 | 18 | 8,5 | 14 |
| 152M-4,3/3S-1/8N | 4,3/3 | G 1/8" | 6,5 | 20 | 18 | 8,5 | 14 |
| 152M-5/3S-M5N | 5/3 | M 5 | 4 | 14 | 15,5 | 5 | 8 |
| 152M-5/3S-1/8A | 5/3 | G 1/8" | 6,5 | 20 | 18 | 8,5 | 14 |
| 152M-5/3S-1/8N | 5/3 | G 1/8" | 6,5 | 20 | 19 | 8,5 | 14 |
| 152M-6/4S-M5N | 6/4 | M 5 | 4 | 14 | 16,5 | 5 | 8 |
| 152M-6/4S-1/8A | 6/4 | G 1/8" | 6,5 | 20 | 21 | 8,5 | 14 |
| 152M-6/4S-1/8N | 6/4 | G 1/8" | 6,5 | 20 | 21 | 8,5 | 14 |
| 152M-6/4S-1/4A | 6/4 | G 1/4" | 8 | 21 | 23 | 8,5 | 17 |
| 152M-6/4S-1/4N | 6/4 | G 1/4" | 8 | 21 | 23 | 8,5 | 17 |
| 152M-6/4-3/8A | 6/4 | G 3/8" | 9 | 21,5 | 26,5 | 8,5 | 19 |
| 152M-6/4-3/8N | 6/4 | G 3/8" | 9 | 21,5 | 26,5 | 8,5 | 19 |
| 152M-6/4-1/2A | 6/4 | G 1/2" | 10 | 21,5 | 29 | 8,5 | 27 |
| 152M-6/4-1/2N | 6/4 | G 1/2" | 10 | 21,5 | 29 | 8,5 | 27 |
| 152M-8/6S-1/8A | 8/6 | G 1/8" | 6,5 | 20 | 21 | 8,5 | 14 |
| 152M-8/6S-1/8N | 8/6 | G 1/8" | 6,5 | 20 | 21 | 8,5 | 14 |
| 152M-8/6S-1/4A | 8/6 | G 1/4" | 8 | 21 | 23 | 8,5 | 17 |
| 152M-8/6S-1/4N | 8/6 | G 1/4" | 8 | 21 | 23 | 8,5 | 17 |
| 152M-8/6-3/8A | 8/6 | G 3/8" | 9 | 21,5 | 26,5 | 8,5 | 19 |
| 152M-8/6-3/8N | 8/6 | G 3/8" | 9 | 21,5 | 26,5 | 8,5 | 19 |
| 152M-8/6-1/2A | 8/6 | G 1/2" | 10 | 21,5 | 29 | 8,5 | 27 |
| 152M-8/6-1/2N | 8/6 | G 1/2" | 10 | 21,5 | 29 | 8,5 | 27 |
