158M-6/4-4,3/3
(HU) Hollanderes egyenes összekötő
You can add comments on the request summary page.
| Kivitel: | összekötő |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | Without seal |
| Medium: | Compressed air, liquids |
| Operating pressure: | 0…25 bar |
| Port size | A: | Ø6/4 |
| Port size | B: | Ø4,3/3 |
| Pressure range: | 0…25 bar |
| Temperature range: | -40°C…+120°C |
158M-6/4-4,3/3
(HU) Hollanderes egyenes összekötő
Please register here to access downloads for data sheets and 3D models.

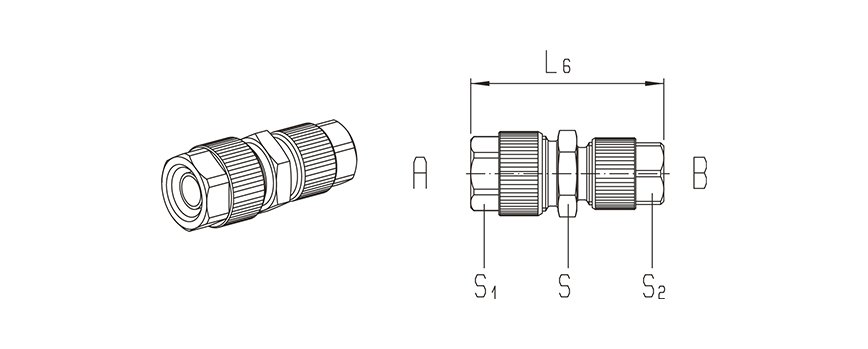

| Product number | Port size | A | Port size | B | Options |
|---|
| Type number | Tube size A | Tube size B | L6 | S1 | S2 | S |
|---|---|---|---|---|---|---|
| 158M-4,3/3 | 4,3/3 | 4,3/3 | 25 | 7 | 7 | 8 |
| 158M-5/3-4,3/3 | 5/3 | 4,3/3 | 25 | 7 | 7 | 8 |
| 158M-5/3 | 5/3 | 5/3 | 25 | 7 | 7 | 8 |
| 158M-6/4-4,3/3 | 6/4 | 4,3/3 | 28 | 10 | 7 | 12 |
| 158M-6/4-5/3 | 6/4 | 5/3 | 28 | 10 | 7 | 12 |
| 158M-6/4 | 6/4 | 6/4 | 31 | 10 | 10 | 12 |
| 158M-8/6-6/4 | 8/6 | 6/4 | 31 | 12 | 10 | 12 |
| 158M-8/6 | 8/6 | 8/6 | 31 | 12 | 12 | 12 |
| 158M-10/8-6/4 | 10/8 | 6/4 | 33 | 13 | 10 | 14 |
| 158M-10/8-8/6 | 10/8 | 8/6 | 33 | 13 | 12 | 14 |
| 158M-10/8 | 10/8 | 10/8 | 34,5 | 13 | 13 | 14 |
| 158M-12/10 | 12/10 | 12/10 | 38 | 15 | 15 | 17 |
| 158M-15/12,5 | 15/12,5 | 15/12,5 | 43,5 | 19 | 19 | 22 |
| 158M-17,6/13 | 17,6/13 | 17,6/13 | 43,5 | 22 | 22 | 22 |
