205M-1K-1
(HU) T-idom - BKK
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | Without seal |
| Medium: | Compressed air |
| Operating pressure: | 0…50 bar |
| Port size / Connection: | R 1" |
| Port size | Push-in connection: | G 1" |
| Pressure range: | 0…50 bar |
| Temperature range: | -40°C…+120°C |
205M-1K-1
(HU) T-idom - BKK
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

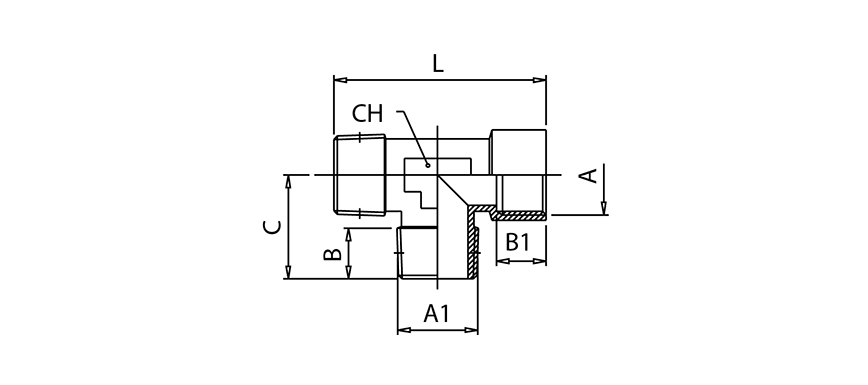

| Type number | Port size A | Port size A1 | B | B1 | C | L | CH |
|---|---|---|---|---|---|---|---|
| 205M-1/8K-1/8 | G 1/8" | R 1/8" | 8 | 8,5 | 17,5 | 37 | 12 |
| 205M-1/4K-1/4 | G 1/4" | R 1/4" | 11 | 11 | 23 | 47,5 | 13 |
| 205M-3/8K-3/8 | G 3/8" | R 3/8" | 11,5 | 12 | 25,5 | 52,5 | 16 |
| 205M-1/2K-1/2 | G 1/2" | R 1/2" | 14 | 15 | 29,5 | 61,5 | 20 |
| 205M-3/4K-3/4 | G 3/4" | R 3/4" | 14,5 | 16,5 | 32 | 68,5 | 27 |
| 205M-1K-1 | G 1" | R 1" | 16,8 | 19 | 39 | 84 | 30 |
