251M-1/4-1/2
(HU) Redukáló közcsavar - KK
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | Without seal |
| Medium: | Compressed air |
| Operating pressure: | 0…50 bar |
| Port size / Connection: | G 1/4" |
| Port size | Push-in connection: | G 1/2" |
| Pressure range: | 0…50 bar |
| Temperature range: | -40°C…+120°C |
251M-1/4-1/2
(HU) Redukáló közcsavar - KK
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

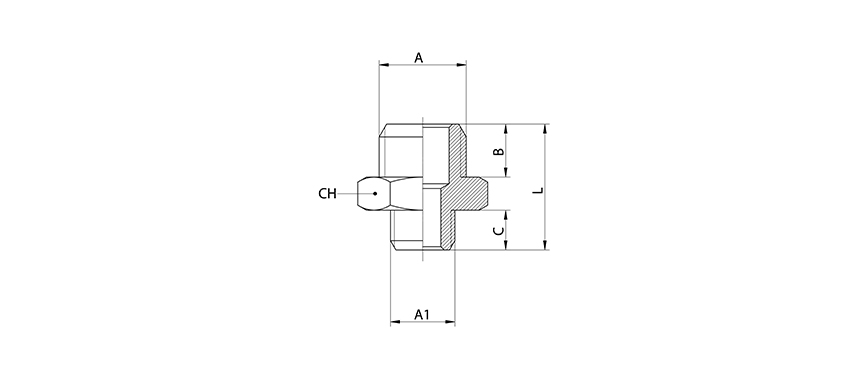

| Type number | Port size A | Port size A1 | B | C | L | CH |
|---|---|---|---|---|---|---|
| 251M-M5-1/8 | M 5 | G 1/8" | 4 | 6 | 14,5 | 14 |
| 251M-1/8-1/4 | G 1/8" | G 1/4" | 6 | 8 | 19 | 17 |
| 251M-1/8-3/8 | G 1/8" | G 3/8" | 6 | 9 | 20 | 19 |
| 251M-1/8-1/2 | G 1/8" | G 1/2" | 6 | 10 | 21,5 | 24 |
| 251M-1/4-3/8 | G 1/4" | G 3/8" | 8 | 9 | 22 | 19 |
| 251M-1/4-1/2 | G 1/4" | G 1/2" | 8 | 10 | 23,5 | 24 |
| 251M-3/8-1/2 | G 3/8" | G 1/2" | 9 | 10 | 24,5 | 24 |
| 251M-1/2-3/4 | G 1/2" | G 3/4" | 10 | 12 | 27,5 | 30 |
