518M-3/8
(HU) Gyorscsatlakozó dugó, külső menettel - DN7,2
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | Without seal |
| Medium: | Compressed air |
| Operating pressure: | 0…16 bar |
| Port size | Push-in connection: | G 3/8" |
| Temperature range: | -20°C…+80°C |
518M-3/8
(HU) Gyorscsatlakozó dugó, külső menettel - DN7,2
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size | Push-in connection | Options |
|---|

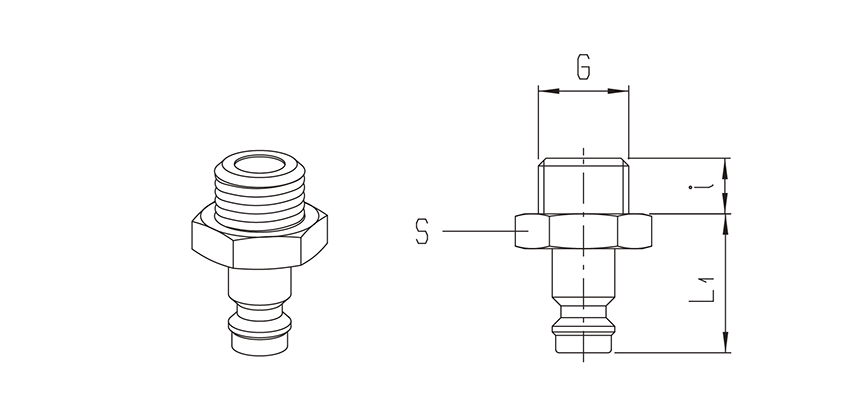

| Type number | DN | Port size G | i | L1 | S |
|---|---|---|---|---|---|
| 518M-1/4 | 7,2 | G 1/4" | 8 | 25 | 17 |
| 518M-3/8 | 7,2 | G 3/8" | 9 | 25 | 19 |
| 518M-1/2 | 7,2 | G 1/2" | 10 | 25,5 | 24 |
