553M-1/4
(HU) Gyorscsatlakozó kuplung, belső menettel - DN5
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | NBR |
| Medium: | Compressed air |
| Operating pressure: | 0…16 bar |
| Port size | Push-in connection: | G 1/8" |
| Temperature range: | -20°C…+80°C |
553M-1/4
(HU) Gyorscsatlakozó kuplung, belső menettel - DN5
Please register here to access downloads for data sheets and 3D models.

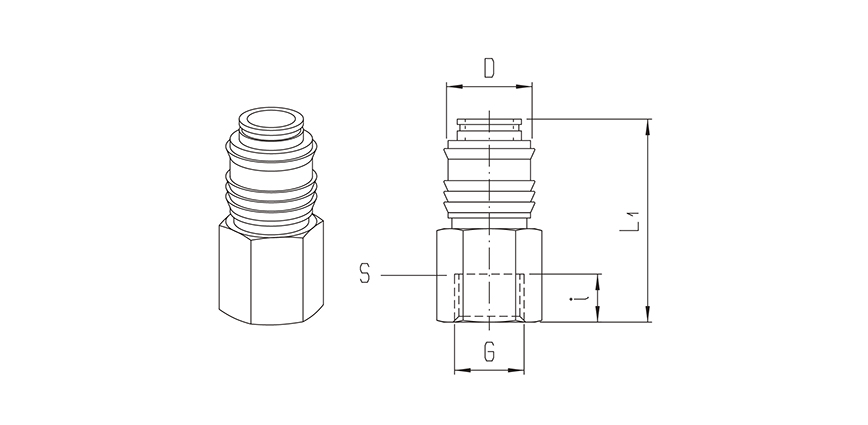

| Product number | Port size | Push-in connection | Options |
|---|
| Type number | DN | Port size G | i | L1 | D | S |
|---|---|---|---|---|---|---|
| 553M-1/8 | 5 | G 1/8" | 9 | 37 | 17 | 14 |
| 553M-1/4 | 5 | G 1/4" | 9 | 38 | 17 | 17 |
