568M-14
(HU) Gyorscsatlakozó dugó, tömlővéges - DN7,2
You can add comments on the request summary page.
| Kivitel: | tömlővéges |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | Without seal |
| Medium: | Compressed air |
| Operating pressure: | 0…16 bar |
| Port size | Push-in connection: | Ø14 |
| Temperature range: | -20°C…+80°C |
568M-14
(HU) Gyorscsatlakozó dugó, tömlővéges - DN7,2
Please register here to access downloads for data sheets and 3D models.

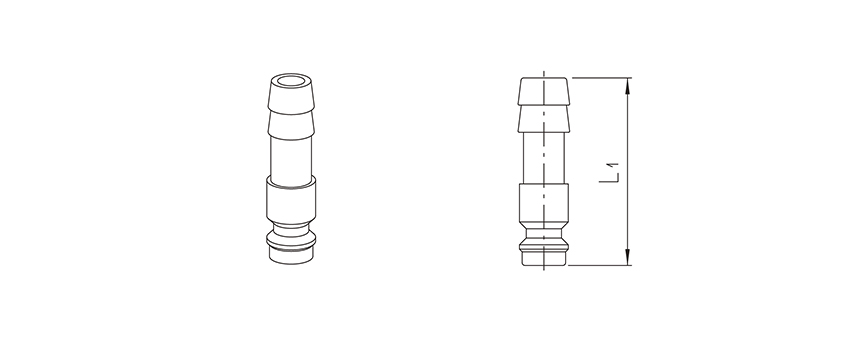

| Product number | Port size | Push-in connection | Options |
|---|
| Type number | DN | Tube size | L1 |
|---|---|---|---|
| 568M-6 | 7,2 | 4...5 | 39,5 |
| 568M-9 | 7,2 | 7...8 | 39,5 |
| 568M-12 | 7,2 | 10...11 | 39,5 |
| 568M-14 | 7,2 | 12...13 | 39,5 |
