921X4-6F-1/4
(HU) Dugaszolható T-csatlakozó - INOX
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Stainless steel |
|---|---|
| Kivitel: | menetes |
| Material: | Stainless steel |
| Material body: | Stainless steel |
| Material release ring: | Stainless steel / PVDF |
| Material retaining ring: | Stainless steel |
| Material seals: | FKM |
| Material support ring: | PVDF |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | FKM |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø6 |
| Port size / Connection: | G 1/4" |
| Port size | Push-in connection: | Ø6 |
| Pressure range: | 0…20 bar |
| Rögzítő gyűrű anyaga: | Stainless steel |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | 0°C…+120°C |
921X4-6F-1/4
(HU) Dugaszolható T-csatlakozó - INOX
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

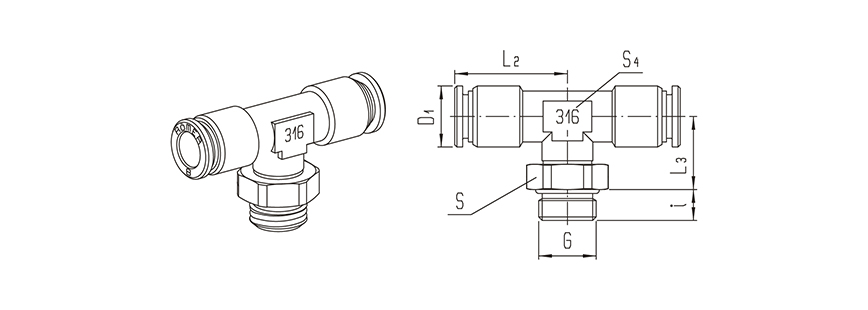

| Type number | Tube size | Port size G | L2 | L3 | i | D1 | S4 | S |
|---|---|---|---|---|---|---|---|---|
| 921X4-4F-1/8 | 4 | G 1/8" | 22 | 15 | 5 | 10 | 10 | 13 |
| 921X4-6F-1/8 | 6 | G 1/8" | 24 | 15 | 5 | 12 | 10 | 13 |
| 921X4-6F-1/4 | 6 | G 1/4" | 24 | 15 | 7 | 12 | 10 | 17 |
| 921X4-8F-1/8 | 8 | G 1/8" | 27,5 | 16,5 | 5 | 14 | 13 | 13 |
| 921X4-8F-1/4 | 8 | G 1/4" | 27,5 | 17 | 7 | 14 | 13 | 17 |
| 921X4-8F-3/8 | 8 | G 3/8" | 27,5 | 19 | 8 | 14 | 13 | 19 |
| 921X4-10F-1/4 | 10 | G 1/4" | 29,5 | 17 | 7 | 16,5 | 13 | 17 |
| 921X4-10F-3/8 | 10 | G 3/8" | 29,5 | 19 | 8 | 16,5 | 13 | 19 |
| 921X4-12F-3/8 | 12 | G 3/8" | 32 | 19 | 8 | 20 | 17 | 19 |
