951R-6-1/8
(HU) Forgó egyenes csatl., kúpos öntömítő menettel - RPM 500
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Kivitel: | csatlakozó (menetes) |
| Material seals: | NBR |
| Maximum speed: | 500 rpm |
| Port size / Connection: | R 1/8" |
| Port size | Push-in connection: | Ø6 |
| Pressure range: | 0…10 bar |
951R-6-1/8
(HU) Forgó egyenes csatl., kúpos öntömítő menettel - RPM 500
Please register here to access downloads for data sheets and 3D models.
| Product number | Maximum speed | Port size / Connection | Port size | Push-in connection | Options |
|---|

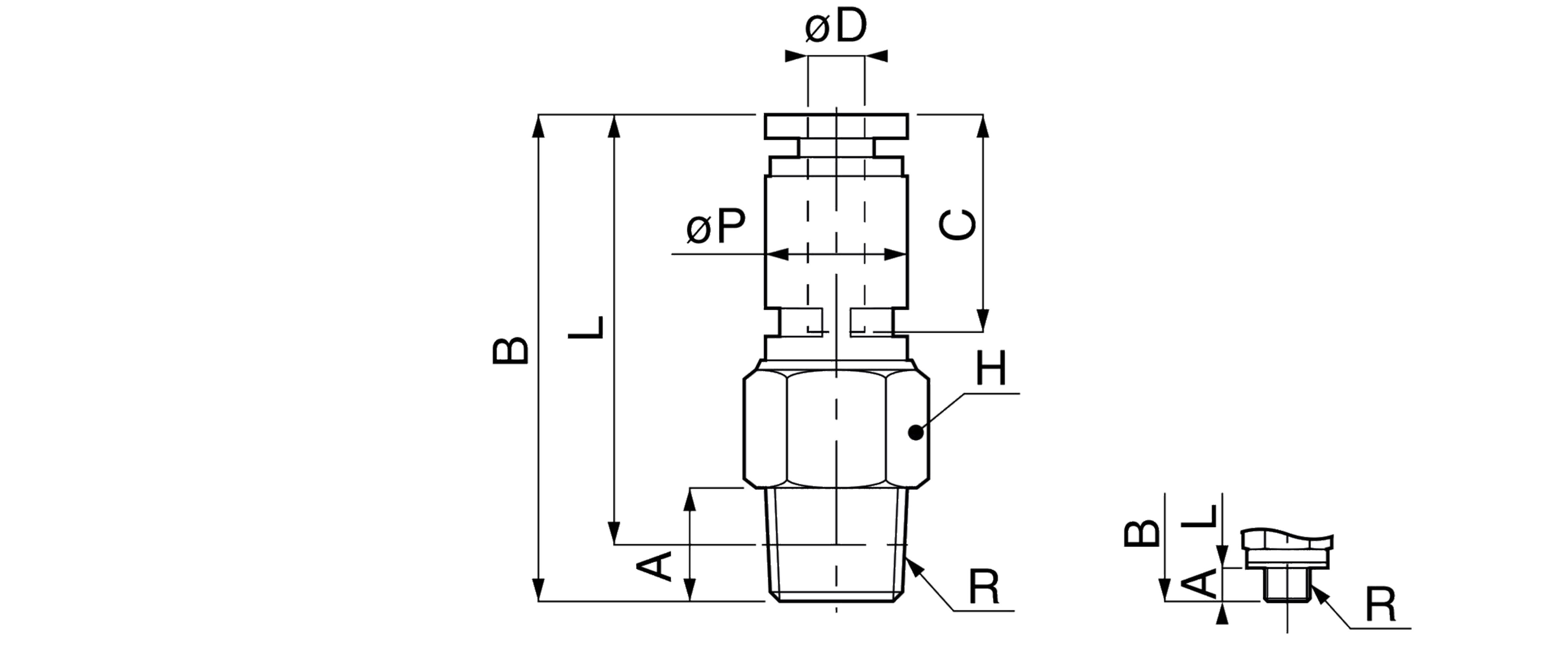

| Type number | Tube size | Port size | A | B | L | P | C | H |
|---|---|---|---|---|---|---|---|---|
| 951R-4-M5 | 4 | M5 | 3 | 32,6 | 29,6 | 10 | 16,1 | 12 |
| 951R-4-1/8 | 4 | R 1/8" | 8 | 34,1 | 301 | 10 | 16,1 | 12 |
| 951R-6-M5 | 6 | M5 | 3 | 36,2 | 36,2 | 12,5 | 17,2 | 14 |
| 951R-6-1/8 | 6 | R 1/8" | 8 | 36,9 | 36,9 | 12,5 | 17,2 | 14 |
| 951R-6-1/4 | 6 | R 1/4" | 11 | 38,9 | 38,9 | 12,5 | 17,2 | 14 |
| 951R-8-1/8 | 8 | R 1/8" | 8 | 45,3 | 45,3 | 14,5 | 18,9 | 17 |
| 951R-8-1/4 | 8 | R 1/4" | 11 | 44,3 | 44,3 | 14,5 | 18,9 | 17 |
| 951R-8-3/8 | 8 | R 3/8" | 12 | 44,3 | 44,3 | 14,5 | 18,9 | 17 |
| 951R-10-1/8 | 10 | R 1/8" | 8 | 55,8 | 51,8 | 17,8 | 20,2 | 22 |
| 951R-10-1/4 | 10 | R 1/4" | 11 | 58,8 | 52,8 | 17,8 | 20,2 | 22 |
| 951R-10-3/8 | 10 | R 3/8" | 12 | 56,8 | 50,5 | 17,8 | 20,2 | 22 |
| 951R-10-1/2 | 10 | R 1/2" | 15 | 59,3 | 51,1 | 17,8 | 20,2 | 22 |
| 951R-12-1/4 | 12 | R 1/4" | 11 | 61,9 | 61,9 | 20,8 | 23,4 | 24 |
| 951R-12-3/8 | 12 | R 3/8" | 12 | 62,4 | 62,4 | 20,8 | 23,4 | 24 |
| 951R-12-3/8 | 12 | R 1/2" | 15 | 62,4 | 62,4 | 20,8 | 23,4 | 24 |
