952P-6-1/8
(HU) Dugaszolható gyűrűs könyökcsatlakozó
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Nickel-plated brass |
|---|---|
| Kivitel: | menetes |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Nickel-plated brass / POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…16 bar |
| Port size: | Ø6 |
| Port size / Connection: | G 1/8" |
| Port size | Push-in connection: | Ø6 |
| Pressure range: | 0…16 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+60°C |
952P-6-1/8
(HU) Dugaszolható gyűrűs könyökcsatlakozó
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

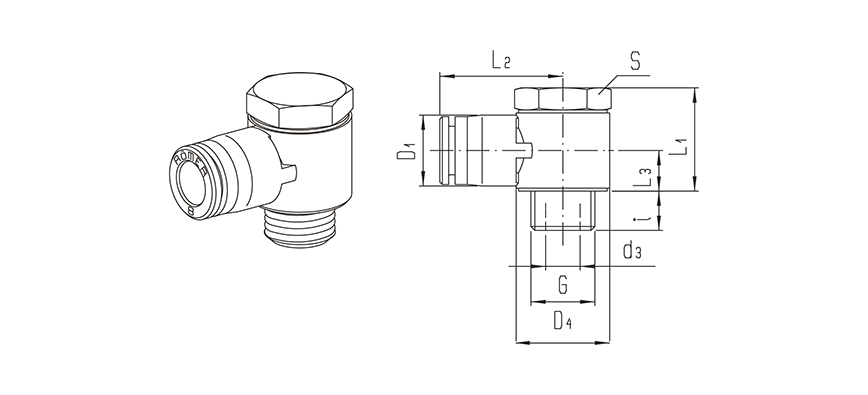

| Type number | Tube size | Port size G | L1 | i | L2 | L3 | d3 | D1 | D4 | S |
|---|---|---|---|---|---|---|---|---|---|---|
| 952P-4-M5 | 4 | M 5 | 14 | 4 | 17 | 5,5 | 2 | 8 | 9 | 8 |
| 952P-4-1/8 | 4 | G 1/8" | 20 | 6,5 | 22 | 8 | 5 | 14,5 | 15 | 14 |
| 952P-6-M5 | 6 | M 5 | 14 | 4 | 18 | 5,5 | 2 | 10 | 9 | 8 |
| 952P-6-1/8 | 6 | G 1/8" | 20 | 6,5 | 22,5 | 8 | 5 | 14,5 | 15 | 14 |
| 952P-6-1/4 | 6 | G 1/4" | 20,5 | 8,5 | 24,5 | 8 | 7 | 14,5 | 19 | 17 |
| 952P-8-1/8 | 8 | G 1/8" | 20 | 6,5 | 23 | 8 | 5 | 14,5 | 15 | 14 |
| 952P-8-1/4 | 8 | G 1/4" | 20,5 | 8,5 | 25 | 8 | 7 | 14,5 | 19 | 17 |
| 952P-8-3/8 | 8 | G 3/8" | 26 | 8,5 | 28,5 | 10,5 | 9,5 | 17 | 22,5 | 19 |
| 952P-10-1/4 | 10 | G 1/4" | 24,5 | 8 | 27,5 | 10 | 7 | 17 | 19 | 17 |
| 952P-10-3/8 | 10 | G 3/8" | 26 | 8,5 | 29 | 10,5 | 9,5 | 17 | 22,5 | 19 |
| 952P-10-1/2 | 10 | G 1/2" | 27 | 8,5 | 29 | 11 | 12 | 21 | 27 | 27 |
| 952P-12-3/8 | 12 | G 3/8" | 27 | 7,5 | 31 | 11 | 9,5 | 21 | 22,5 | 19 |
| 952P-12-1/2 | 12 | G 1/2" | 27 | 8,5 | 33 | 11 | 12 | 21 | 27 | 27 |
| 952P-14-1/2 | 14 | G 1/2" | 31 | 9,5 | 34 | 13 | 12 | 25 | 27 | 27 |
| 952P-16-1/2 | 16 | G 1/2" | 31 | 9,5 | 34 | 13 | 12 | 25 | 27 | 27 |
