954X4-10F
(HU) Dugaszolható T-összekötő - INOX
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Stainless steel |
|---|---|
| Kivitel: | összekötő |
| Material: | Stainless steel |
| Material body: | Stainless steel |
| Material release ring: | Stainless steel / PVDF |
| Material retaining ring: | Stainless steel |
| Material seals: | FKM |
| Material support ring: | PVDF |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | FKM |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø10 |
| Port size | Push-in connection: | Ø10 |
| Pressure range: | 0…20 bar |
| Rögzítő gyűrű anyaga: | Stainless steel |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | 0°C…+120°C |
954X4-10F
(HU) Dugaszolható T-összekötő - INOX
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

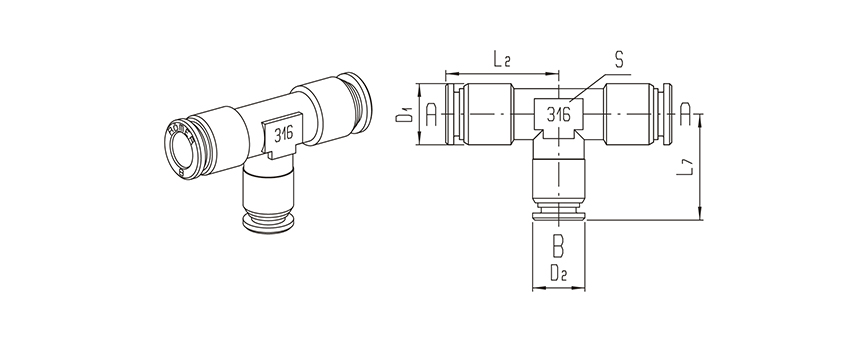

| Type number | Tube size A | Tube size B | L2 | L7 | D1 | D2 | S |
|---|---|---|---|---|---|---|---|
| 954X4-4F | 4 | 4 | 22 | 22 | 10 | 10 | 10 |
| 954X4-6F | 6 | 6 | 24 | 24 | 12 | 12 | 10 |
| 954X4-8F | 8 | 8 | 27,5 | 27,5 | 14 | 14 | 13 |
| 954X4-10F | 10 | 10 | 29,5 | 29,5 | 16,5 | 16,5 | 13 |
| 954X4-12F | 12 | 12 | 32 | 32 | 20 | 20 | 17 |
