955P-4
(HU) Dugaszolható könyök összekötő
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Nickel-plated brass |
|---|---|
| Kivitel: | összekötő |
| Material: | POM |
| Material body: | POM |
| Material release ring: | Nickel-plated brass / POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…16 bar |
| Port size: | Ø4 |
| Port size | Push-in connection: | Ø4 |
| Pressure range: | 0…16 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+60°C |
955P-4
(HU) Dugaszolható könyök összekötő
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

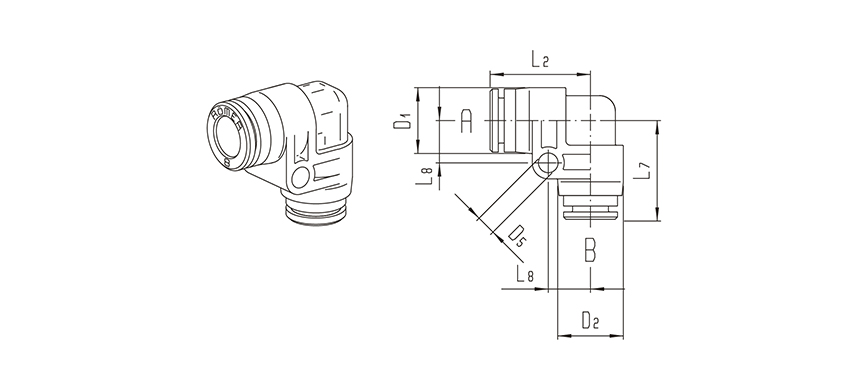

| Type number | Tube size A | Tube size B | L2 | L7 | L8 | D1 | D2 | D5 |
|---|---|---|---|---|---|---|---|---|
| 955P-4 | 4 | 4 | 18,5 | 18,5 | 8,3 | 12,5 | 12,5 | 4,3 |
| 955P-6-4 | 6 | 4 | 19 | 18,5 | 8,3 | 12,5 | 12,5 | 4,3 |
| 955P-6 | 6 | 6 | 19 | 19 | 8,3 | 12,5 | 12,5 | 4,3 |
| 955P-8-6 | 8 | 6 | 22 | 21,5 | 9,3 | 14,5 | 14,5 | 4,3 |
| 955P-8 | 8 | 8 | 22 | 22 | 9,3 | 14,5 | 14,5 | 4,3 |
| 955P-10-6 | 10 | 6 | 26 | 25 | 12 | 17 | 17 | 4,3 |
| 955P-10-8 | 10 | 8 | 26 | 25,5 | 12 | 17 | 17 | 4,3 |
| 955P-10 | 10 | 10 | 26 | 26 | 12 | 17 | 17 | 4,3 |
| 955P-12 | 12 | 12 | 31 | 31 | 12 | 23 | 23 | 4,3 |
| 955P-14 | 14 | 14 | 31 | 31 | 12 | 23 | 23 | 4,3 |
| 955P-16 | 16 | 16 | 32 | 32 | 12 | 25 | 25 | 4,3 |
| 955P-22 | 22 | 22 | 40 | 40 | 16 | 34 | 34 | 5,4 |
