958M-10
(HU) Dugaszolható egyenes összekötő
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Nickel-plated brass |
|---|---|
| Kivitel: | összekötő |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Nickel-plated brass / POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…20 bar |
| Port size: | Ø10 |
| Port size | Push-in connection: | Ø10 |
| Pressure range: | 0…20 bar |
| Rögzítő gyűrű anyaga: | Stainless steel |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
958M-10
(HU) Dugaszolható egyenes összekötő
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

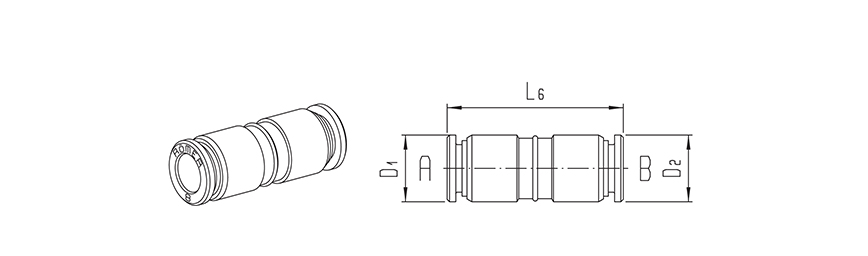

| Type number | Tube size A | Tube size B | L6 | D1 | D2 |
|---|---|---|---|---|---|
| 958M-4 | 4 | 4 | 31 | 10 | 10 |
| 958M-6-4 | 6 | 4 | 32,5 | 12 | 10 |
| 958M-6 | 6 | 6 | 34 | 12 | 12 |
| 958M-8-6 | 8 | 6 | 35 | 14 | 12 |
| 958M-8 | 8 | 8 | 36,5 | 14 | 14 |
| 958M-10-8 | 10 | 8 | 39,5 | 16,5 | 14 |
| 958M-10 | 10 | 10 | 41,5 | 16,5 | 16,5 |
