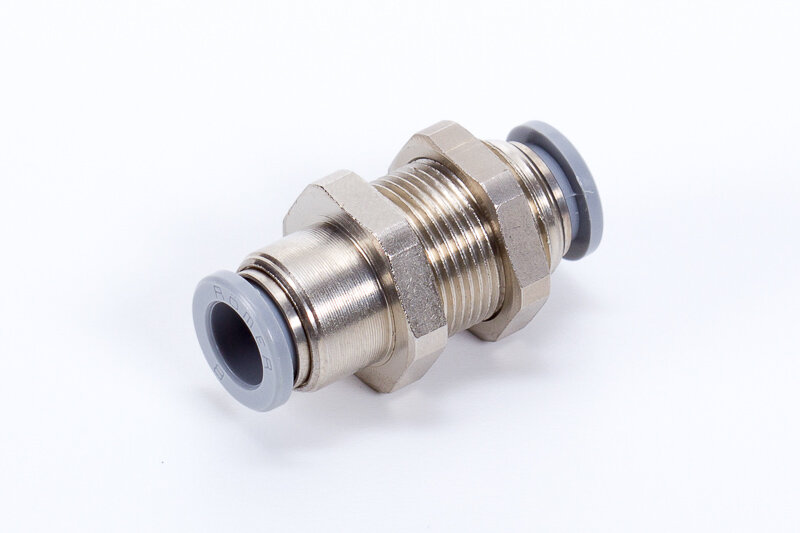

959M-8
(HU) Dugaszolható falonátvezető összekötő
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Nickel-plated brass |
|---|---|
| Kivitel: | összekötő |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Nickel-plated brass / POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…20 bar |
| Port size: | Ø8 |
| Port size | Push-in connection: | Ø8 |
| Pressure range: | 0…20 bar |
| Rögzítő gyűrű anyaga: | Stainless steel |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
959M-8
(HU) Dugaszolható falonátvezető összekötő
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

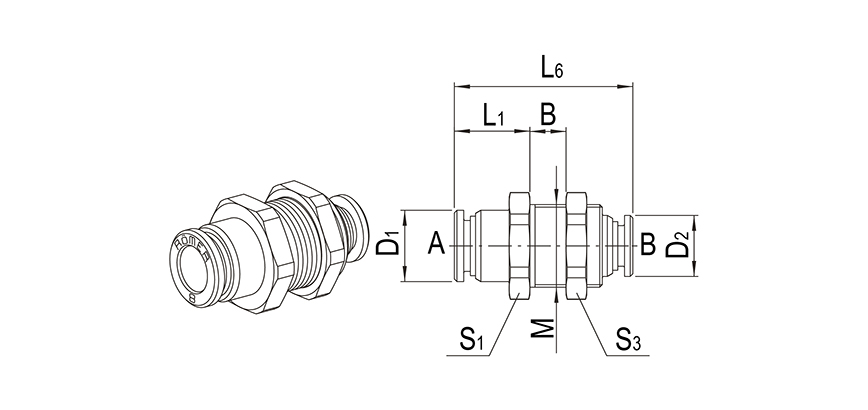

| Type number | Tube size A | Tube size B | M | B | L1 | L6 | D1 | D2 | S1 | S3 |
|---|---|---|---|---|---|---|---|---|---|---|
| 959M-4 | 4 | 4 | M 12 x 1 | 1-10 | 11,5 | 30 | 10 | 10 | 14 | 17 |
| 959M-6-4 | 6 | 4 | M 14 x 1 | 1-10 | 12,5 | 31,5 | 12 | 10 | 17 | 17 |
| 959M-6 | 6 | 6 | M 14 x 1 | 1-10 | 13,5 | 32,5 | 12 | 12 | 17 | 17 |
| 959M-8-6 | 8 | 6 | M 16 x 1 | 1-10 | 14,5 | 34,5 | 14 | 12 | 19 | 19 |
| 959M-8 | 8 | 8 | M 16 x 1 | 1-10 | 16,5 | 36,5 | 14 | 14 | 19 | 19 |
| 959M-10-8 | 10 | 8 | M 20 x 1 | 1-10 | 19 | 39 | 16,5 | 14 | 22 | 24 |
| 959M-10 | 10 | 10 | M 20 x 1 | 1-10 | 21 | 42 | 16,5 | 16,5 | 22 | 24 |
| 959M-12 | 12 | 12 | M 22 x 1,5 | 1-10 | 22,5 | 45,5 | 20 | 20 | 24 | 27 |
| 959M-14 | 14 | 14 | M 24 x 1,5 | 1-10 | 23,5 | 46,5 | 22 | 22 | 27 | 27 |
