980P-4-1/8
(HU) Dugaszolható könyök csatlakozó, hosszított
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Nickel-plated brass |
|---|---|
| Kivitel: | menetes |
| Material: | POM |
| Material body: | POM |
| Material release ring: | POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…16 bar |
| Port size: | Ø4 |
| Port size / Connection: | G 1/8" |
| Port size | Push-in connection: | Ø4 |
| Pressure range: | 0…16 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+60°C |
980P-4-1/8
(HU) Dugaszolható könyök csatlakozó, hosszított
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

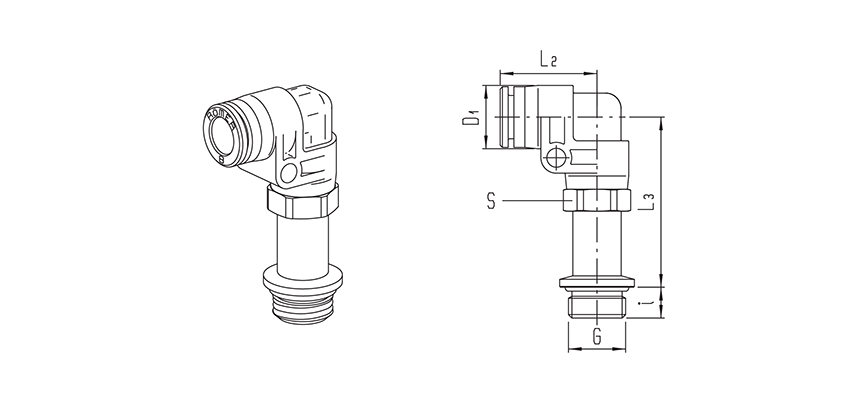

| Type number | Tube size | Port size G | L2 | L3 | i | D1 | S |
|---|---|---|---|---|---|---|---|
| 980P-4-1/8 | 4 | G 1/8" | 18,5 | 34 | 5 | 12,5 | 12 |
| 980P-4-1/4 | 4 | G 1/4" | 18,5 | 34,5 | 7 | 12,5 | 12 |
| 980P-6-1/8 | 6 | G 1/8" | 19 | 34 | 5 | 12,5 | 12 |
| 980P-6-1/4 | 6 | G 1/4" | 19 | 34,5 | 7 | 12,5 | 12 |
| 980P-8-1/8 | 8 | G 1/8" | 22 | 37,5 | 5 | 14,5 | 14 |
| 980P-8-1/4 | 8 | G 1/4" | 22 | 39 | 7 | 14,5 | 14 |
| 980P-8-3/8 | 8 | G 3/8" | 22 | 39,5 | 8 | 14,5 | 14 |
| 980P-10-1/4 | 10 | G 1/4" | 26 | 42,5 | 7 | 17 | 17 |
| 980P-10-3/8 | 10 | G 3/8" | 26 | 45,5 | 8 | 17 | 17 |
