992P-8-1/8
(HU) Dugaszolható Y-csatlakozó
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Nickel-plated brass |
|---|---|
| Kivitel: | menetes |
| Material: | POM |
| Material body: | POM |
| Material release ring: | POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, water |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…16 bar |
| Port size: | Ø8 |
| Port size / Connection: | G 1/8" |
| Port size | Push-in connection: | Ø8 |
| Pressure range: | 0…16 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+60°C |
992P-8-1/8
(HU) Dugaszolható Y-csatlakozó
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

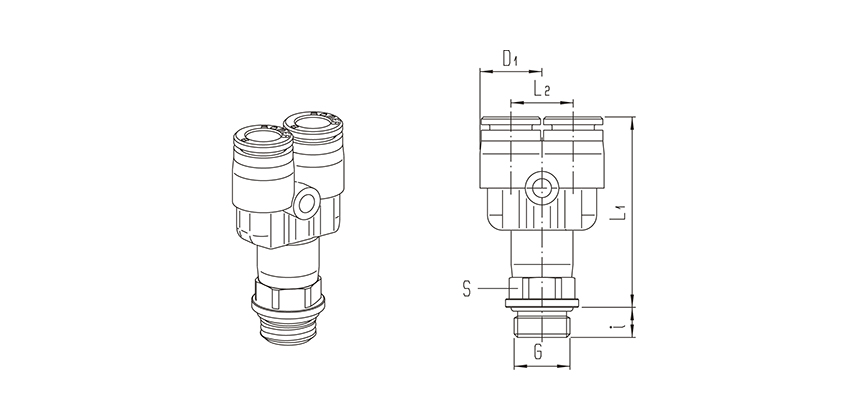

| Type number | Tube size | Port size G | L1 | L2 | i | D1 | S |
|---|---|---|---|---|---|---|---|
| 992P-4-1/8 | 4 | G 1/8" | 39 | 12,5 | 5 | 12,5 | 12 |
| 992P-4-1/4 | 4 | G 1/4" | 39 | 12,5 | 7 | 12,5 | 12 |
| 992P-6-1/8 | 6 | G 1/8" | 39,5 | 12,5 | 5 | 12,5 | 12 |
| 992P-6-1/4 | 6 | G 1/4" | 39,5 | 12,5 | 7 | 12,5 | 12 |
| 992P-8-1/8 | 8 | G 1/8" | 43 | 14,5 | 5 | 14,5 | 14 |
| 992P-8-1/4 | 8 | G 1/4" | 44,5 | 14,5 | 7 | 14,5 | 14 |
| 992P-8-3/8 | 8 | G 3/8" | 45 | 14,5 | 8 | 14,5 | 14 |
| 992P-10-1/4 | 10 | G 1/4" | 49 | 17 | 7 | 17 | 17 |
| 992P-10-3/8 | 10 | G 3/8" | 50,5 | 17 | 8 | 17 | 17 |
| 992P-12-3/8 | 12 | G 3/8" | 55 | 20,5 | 8 | 21 | 22 |
| 992P-12-1/2 | 12 | G 1/2" | 55,5 | 20,5 | 9 | 21 | 24 |
