A-00111-1/8
(HU) Gyorscsatlakozó kuplung, külső menettel - DN5
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Stainless steel |
|---|---|
| Golyó anyaga: | Stainless steel |
| Kivitel: | menetes |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material seals: | NBR |
| Material springs: | Stainless steel |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…12 bar |
| Port size | Push-in connection: | G 1/8" |
| Pressure range: | 0…12 bar |
A-00111-1/8
(HU) Gyorscsatlakozó kuplung, külső menettel - DN5
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size | Push-in connection | Options |
|---|

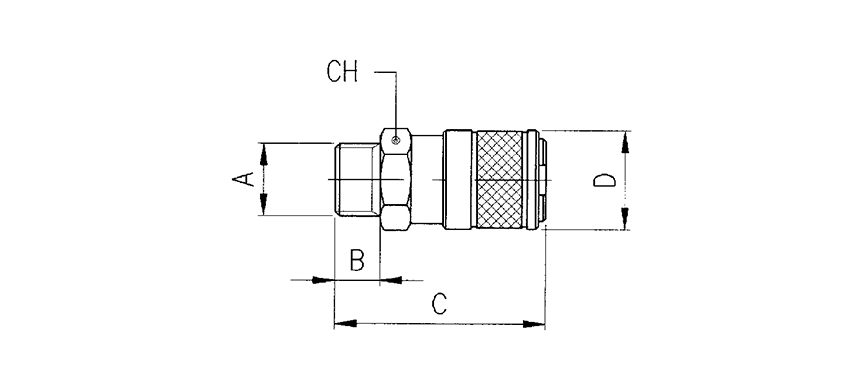

| Type number | DN | Port size A | B | C | D | CH |
|---|---|---|---|---|---|---|
| A-00111-1/8 | 5 | G 1/8" | 6 | 35,5 | 18 | 16 |
| A-00111-1/4 | 5 | G 1/4" | 8 | 37,5 | 18 | 16 |
| A-00111-3/8 | 5 | G 3/8" | 9 | 38,5 | 18 | 19 |
