A-00114-6/4
(HU) Gyorscsatlakozó kuplung, hollanderes - DN5
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Stainless steel |
|---|---|
| Golyó anyaga: | Stainless steel |
| Kivitel: | hollanderes |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material seals: | NBR |
| Material springs: | Stainless steel |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…12 bar |
| Port size | A: | Ø6 |
| Port size | B: | Ø4 |
| Port size | Push-in connection: | Ø6/4 |
| Pressure range: | 0…12 bar |
A-00114-6/4
(HU) Gyorscsatlakozó kuplung, hollanderes - DN5
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size | Push-in connection | Options |
|---|

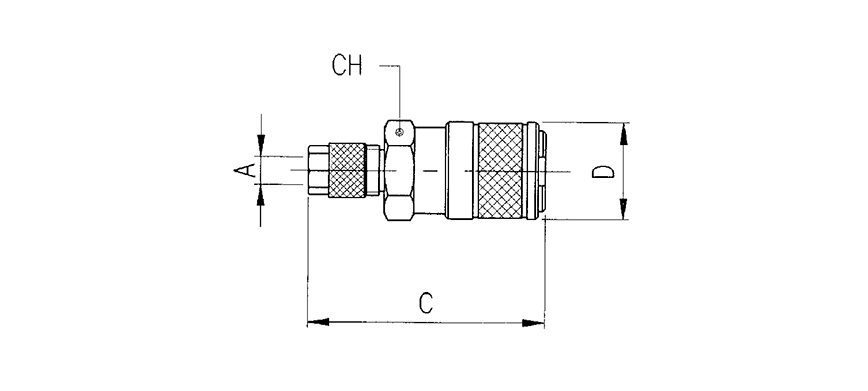

| Type number | DN | Tube size A | C | D | CH |
|---|---|---|---|---|---|
| A-00114-6/4 | 5 | 6/4 | 42 | 18 | 16 |
| A-00114-8/6 | 5 | 8/6 | 42 | 18 | 16 |
