A-00212-1/8
(HU) Gyorscsatlakozó dugó, belső menettel - DN5
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Stainless steel |
|---|---|
| Golyó anyaga: | Stainless steel |
| Kivitel: | menetes |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material seals: | Without seal |
| Material springs: | Stainless steel |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…12 bar |
| Port size | Push-in connection: | G 1/8" |
| Pressure range: | 0…12 bar |
A-00212-1/8
(HU) Gyorscsatlakozó dugó, belső menettel - DN5
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size | Push-in connection | Options |
|---|

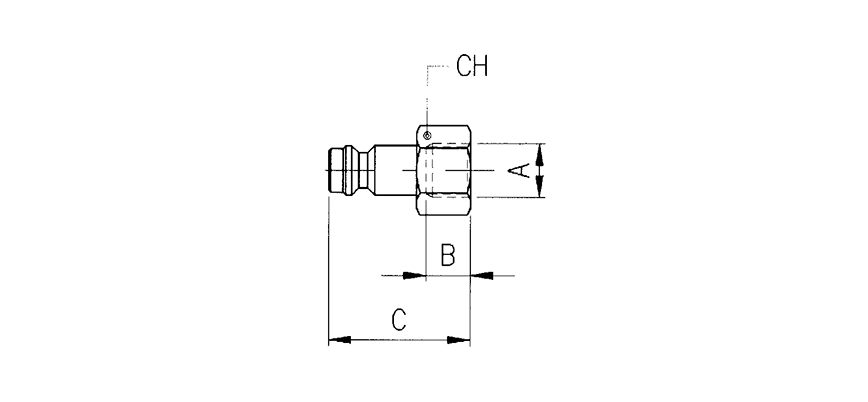

| Type number | DN | Port size A | B | C | CH |
|---|---|---|---|---|---|
| A-00212-1/8 | 5 | G 1/8" | 7,5 | 25 | 14 |
| A-00212-1/4 | 5 | G 1/4" | 11 | 28,5 | 17 |
| A-00212-3/8 | 5 | G 3/8" | 11,5 | 29 | 19 |
