A-00215-6
(HU) Gyorscsatlakozó dugó, tömlővéges - DN5
You can add comments on the request summary page.
| Csatlakozó hüvely anyaga: | Stainless steel |
|---|---|
| Golyó anyaga: | Stainless steel |
| Kivitel: | tömlővéges |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material seals: | Without seal |
| Material springs: | Stainless steel |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…12 bar |
| Port size | Push-in connection: | Ø6 |
| Pressure range: | 0…12 bar |
A-00215-6
(HU) Gyorscsatlakozó dugó, tömlővéges - DN5
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size | Push-in connection | Options |
|---|

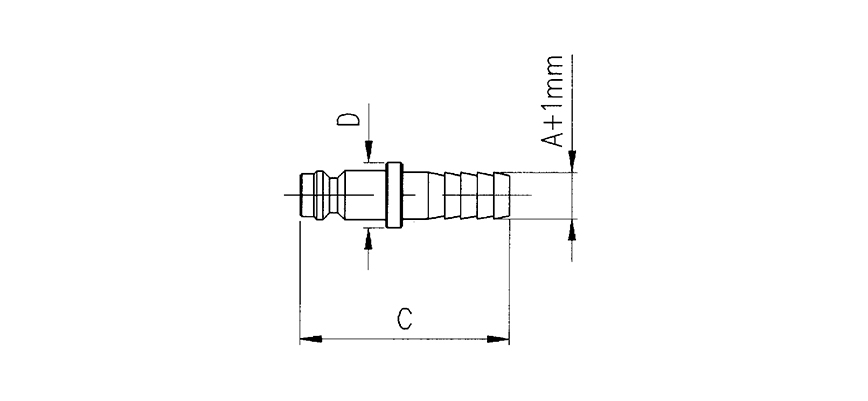

| Type number | DN | Tube size A | C | D |
|---|---|---|---|---|
| A-00215-4 | 5 | 3...4 | 35 | 9 |
| A-00215-6 | 5 | 5...6 | 35 | 9 |
| A-00215-8 | 5 | 7...8 | 38 | 12 |
