A-00263-12/10
(HU) Gyorscsatlakozó dugó, hollanderes, tömlővédő spirállal - DN7,5
You can add comments on the request summary page.
| Kivitel: | hollanderes tömlővédő spirállal |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Nickel-plated brass |
| Material seals: | Without seal |
| Material springs: | Stainless steel |
| Material support ring: | Nickel-plated brass |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…16 bar |
| Port size | A: | Ø12 |
| Port size | B: | Ø10 |
| Port size | Push-in connection: | Ø12/10 |
| Pressure range: | 0…16 bar |
A-00263-12/10
(HU) Gyorscsatlakozó dugó, hollanderes, tömlővédő spirállal - DN7,5
Please register here to access downloads for data sheets and 3D models.

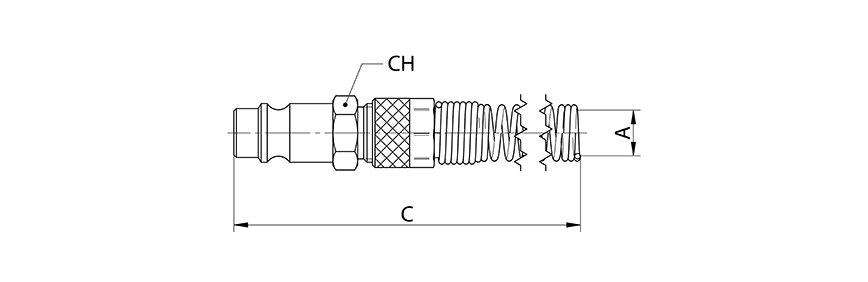

| Product number | Port size | Push-in connection | Options |
|---|
| Type number | DN | Tube size | C | CH |
|---|---|---|---|---|
| A-00263-6/4 | 7,5 | 6/4 | 124,5 | 13 |
| A-00263-8/6 | 7,5 | 8/6 | 130 | 13 |
| A-00263-10/8 | 7,5 | 10/8 | 137,5 | 14 |
| A-00263-12/10 | 7,5 | 12/10 | 143 | 16 |
