A-00265AC-8
(HU) Gyorscsatlakozó dugó, tömlővéges - DN7,5 - acél
You can add comments on the request summary page.
| Kivitel: | tömlővéges |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Nickel-plated brass |
| Material seals: | Without seal |
| Material springs: | Stainless steel |
| Material support ring: | Nickel-plated brass |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0…16 bar |
| Port size | Push-in connection: | Ø8 |
| Pressure range: | 0…16 bar |
A-00265AC-8
(HU) Gyorscsatlakozó dugó, tömlővéges - DN7,5 - acél
Please register here to access downloads for data sheets and 3D models.

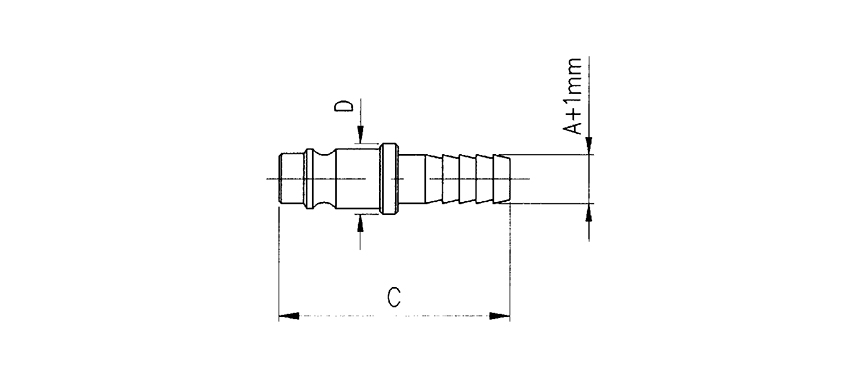

| Product number | Port size | Push-in connection | Options |
|---|
| Type number | DN | Tube size A | C | D |
|---|---|---|---|---|
| A-00265AC-6 | 7,5 | 5...6 | 39,5 | 12 |
| A-00265AC-8 | 7,5 | 7...8 | 39,5 | 12 |
| A-00265AC-10 | 7,5 | 9...10 | 42,5 | 14 |
| A-00265AC-12 | 7,5 | 11...12 | 42,5 | 16 |
