A-00664-8/6
(HU) Gyorscsatlakozó kuplung, hollanderes - DN7,5 - biztonsági
You can add comments on the request summary page.
| Kivitel: | hollanderes |
|---|---|
| Material: | Technopolymer |
| Material body: | Technopolymer |
| Material release ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material springs: | Stainless steel |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0,99…15 bar |
| Port size | A: | Ø8 |
| Port size | B: | Ø6 |
| Port size | Push-in connection: | Ø8/6 |
| Pressure range: | 0,99…15 bar |
A-00664-8/6
(HU) Gyorscsatlakozó kuplung, hollanderes - DN7,5 - biztonsági
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size | Push-in connection | Options |
|---|

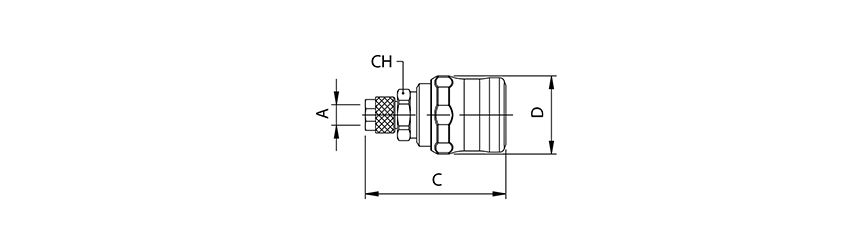

| Type number | DN | Tube size A | C | D | CH |
|---|---|---|---|---|---|
| A-00664-6/4 | 7,5 | 6/4 | 54,5 | 30,5 | 18 |
| A-00664-8/6 | 7,5 | 8/6 | 54 | 30,5 | 18 |
| A-00664-10/8 | 7,5 | 10/8 | 56 | 30,5 | 18 |
| A-00664-12/10 | 7,5 | 12/10 | 56,5 | 30,5 | 18 |
