A-00665-12
(HU) Gyorscsatlakozó kuplung, tömlővéges - DN7,5 - biztonsági
You can add comments on the request summary page.
| Kivitel: | tömlővéges |
|---|---|
| Material: | Technopolymer |
| Material body: | Technopolymer |
| Material release ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material springs: | Stainless steel |
| Medium: | Compressed air |
| O-gyűrű anyaga: | NBR |
| Operating pressure: | 0,99…15 bar |
| Port size | Push-in connection: | Ø12 |
| Pressure range: | 0,99…15 bar |
A-00665-12
(HU) Gyorscsatlakozó kuplung, tömlővéges - DN7,5 - biztonsági
Please register here to access downloads for data sheets and 3D models.

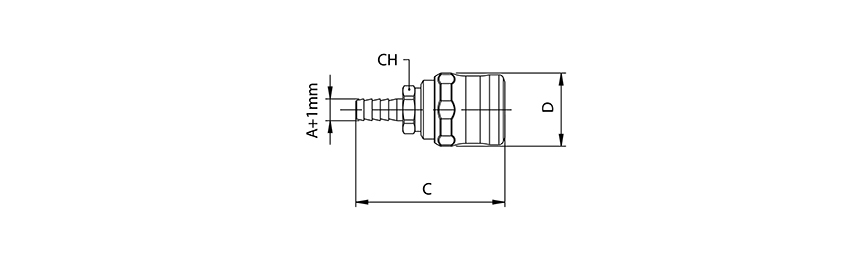

| Product number | Port size | Push-in connection | Options |
|---|
| Type number | DN | Tube size A | C | D | CH |
|---|---|---|---|---|---|
| A-00665-6 | 7,5 | 5...6 | 61 | 30,5 | 18 |
| A-00665-8 | 7,5 | 7...8 | 61 | 30,5 | 18 |
| A-00665-10 | 7,5 | 9...10 | 61 | 30,5 | 18 |
| A-00665-12 | 7,5 | 11...12 | 61 | 30,5 | 18 |
