A-01612-1/2
(HU) Tömítőgyűrű - NBR, acélkeretes
You can add comments on the request summary page.
| Material: | Steel/NBR |
|---|---|
| Material seals: | NBR |
| Port size / Connection: | G 1/2" |
| Temperature range: | -30°C…+100°C |
A-01612-1/2
(HU) Tömítőgyűrű - NBR, acélkeretes
Please register here to access downloads for data sheets and 3D models.
| Product number | Material | Options |
|---|

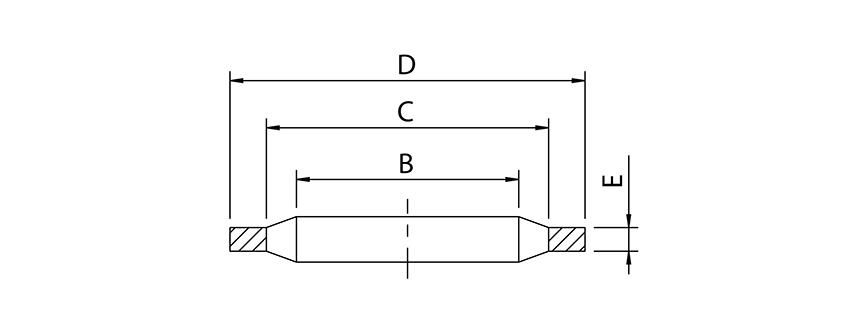

| Type number | Port size | B | C | D | E |
|---|---|---|---|---|---|
| A-01612-1/8 | G 1/8" | 10,4 | 12 | 14,7 | 1,25 |
| A-01612-1/4 | G 1/4" | 13,85 | 15,75 | 18,7 | 1,25 |
| A-01612-3/8 | G 3/8" | 17,35 | 19,25 | 22,7 | 1,25 |
| A-01612-1/2 | G 1/2" | 21,65 | 23,55 | 26,7 | 1,25 |
| A-01612-3/4 | G 3/4" | 27,3 | 29,2 | 32,5 | 1,25 |
| A-01612-1 | G 1" | 34,2 | 36,1 | 39,5 | 2 |
