| Product number | Options |
|---|

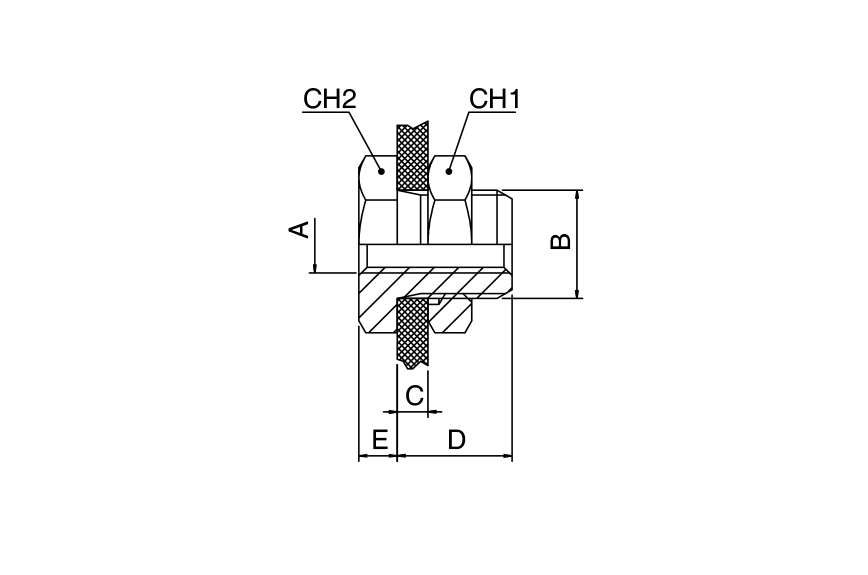

| Type number | Port size | A | B | C max | D | E | CH1 | CH2 |
|---|---|---|---|---|---|---|---|
| A-03060-M5 | M5 | M 10 x 1 | 7 | 10,5 | 3,5 | 14 | 14 |
| A-03060-1/8 | G 1/8 | M 16 x 1,5 | 10 | 14 | 4 | 22 | 19 |
| A-03060-1/4 | G 1/4 | M 20 x 1,5 | 16 | 21 | 4 | 27 | 24 |
| A-03060-3/8 | G 3/8 | M 26 x 1,5 | 15 | 21 | 5 | 32 | 30 |
| A-03060-1/2 | G 1/2 | M28 x 1,5 | 21 | 27 | 6 | 36 | 32 |
| A-03060-3/4 | G 3/4 | M33 x 1,5 | 22,5 | 30,5 | 6 | 41 | 41 |
