A-06048-3/8-1/4-4
(HU) Elosztótömb - G3/8" - G1/4" - 2x4 helyes + tápcsatorna
You can add comments on the request summary page.
| Material: | Aluminum |
|---|---|
| Material seals: | Without seal |
| Number of ports: | 2 + 4 ports |
| Port size / Connection: | G 3/8" |
| Port size | Push-in connection: | G 1/4" |
| Temperature range: | 0...+70°C |
A-06048-3/8-1/4-4
(HU) Elosztótömb - G3/8" - G1/4" - 2x4 helyes + tápcsatorna
Please register here to access downloads for data sheets and 3D models.
| Product number | Number of ports | Options |
|---|

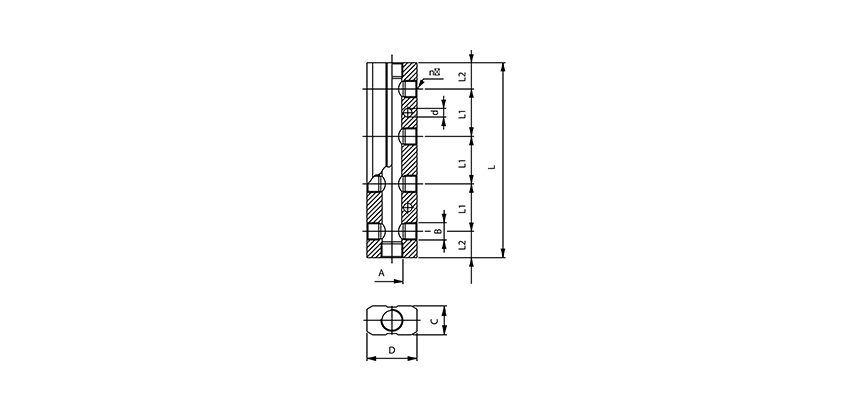

| Type number | Port size A | Port size B | Number of ports | C | D | L1 | L2 | L | d |
|---|---|---|---|---|---|---|---|---|---|
| A-06048-1/4-1/8-2 | G 1/4" | G 1/8" | 2+2 | 18 | 30 | 30 | 17,5 | 65 | 4,5 |
| A-06048-1/4-1/8-3 | G 1/4" | G 1/8" | 3+2 | 18 | 30 | 30 | 17,5 | 95 | 4,5 |
| A-06048-1/4-1/8-4 | G 1/4" | G 1/8" | 4+2 | 18 | 30 | 30 | 17,5 | 125 | 4,5 |
| A-06048-1/4-1/8-5 | G 1/4" | G 1/8" | 5+2 | 18 | 30 | 30 | 17,5 | 155 | 4,5 |
| A-06048-1/4-1/8-6 | G 1/4" | G 1/8" | 6+2 | 18 | 30 | 30 | 17,5 | 185 | 4,5 |
| A-06048-3/8-1/4-2 | G 3/8" | G 1/4" | 2+2 | 22 | 38 | 36 | 20 | 76 | 5,5 |
| A-06048-3/8-1/4-3 | G 3/8" | G 1/4" | 3+2 | 22 | 38 | 36 | 20 | 112 | 5,5 |
| A-06048-3/8-1/4-4 | G 3/8" | G 1/4" | 4+2 | 22 | 38 | 36 | 20 | 148 | 5,5 |
| A-06048-3/8-1/4-5 | G 3/8" | G 1/4" | 5+2 | 22 | 38 | 36 | 20 | 184 | 5,5 |
| A-06048-3/8-1/4-6 | G 3/8" | G 1/4" | 6+2 | 22 | 38 | 36 | 20 | 220 | 5,5 |
| A-06048-1/2-3/8-2 | G 1/2" | G 3/8" | 2+2 | 26 | 44 | 40 | 25 | 90 | 5,5 |
| A-06048-1/2-3/8-3 | G 1/2" | G 3/8" | 3+2 | 26 | 44 | 40 | 25 | 130 | 5,5 |
| A-06048-1/2-3/8-4 | G 1/2" | G 3/8" | 4+2 | 26 | 44 | 40 | 25 | 170 | 5,5 |
| A-06048-1/2-3/8-5 | G 1/2" | G 3/8" | 5+2 | 26 | 44 | 40 | 25 | 210 | 5,5 |
| A-06048-1/2-3/8-6 | G 1/2" | G 3/8" | 6+2 | 26 | 44 | 40 | 25 | 250 | 5,5 |
