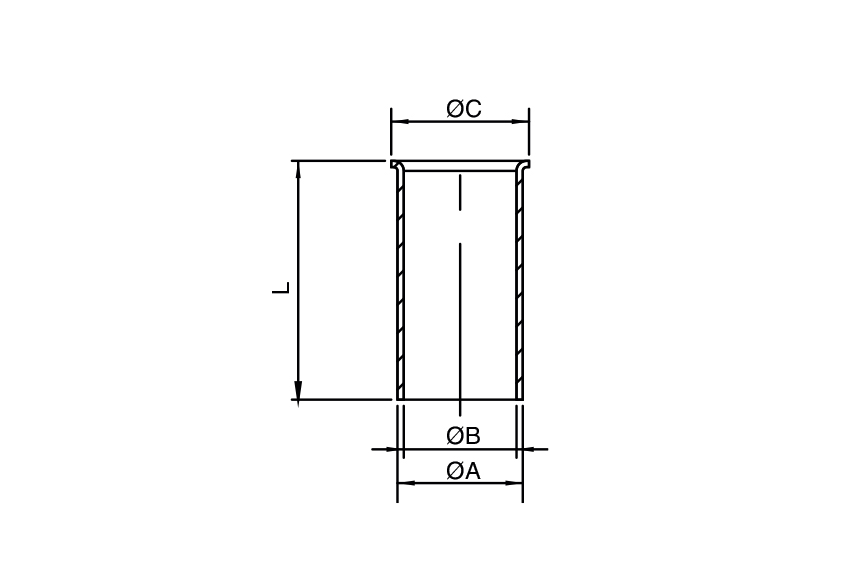

| Product number | Options |
|---|
| Type number | Tube size | A | Tube size | B | C | L |
|---|---|---|---|---|
| A-10770-4/2,7 | Ø 4 | Ø 2,7 | 3,7 | 13 |
| A-10770-6/4 | Ø 6 | Ø 4 | 5 | 13 |
| A-10770-8/6 | Ø 8 | Ø 6 | 7 | 16,5 |
| A-10770-10/8 | Ø 10 | Ø 8 | 9 | 17 |
| A-10770-12/9 | Ø 12 | Ø 9 | 11 | 19 |
| A-10770-12/10 | Ø 12 | Ø 10 | 11 | 19 |
| A-10770-14/12 | Ø 14 | Ø 12 | 13,5 | 21 |
| A-10770-15/12,5 | Ø 15 | Ø 12,5 | 14 | 21 |
| A-10770-16/13 | Ø 16 | Ø 13 | 15,5 | 22 |
| A-10770-18/15 | Ø 18 | Ø 15 | 17,5 | 23 |
| A-10770-18/16 | Ø 18 | Ø 16 | 17,5 | 23 |
| A-10770-22/18 | Ø 22 | Ø 18 | 21 | 25 |
