A-55325-6-1/4
(HU) Dugaszolható Y-csatlakozó
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Technopolymer |
| Material retaining ring: | Stainless steel |
| Material seals: | NBR |
| Material support ring: | Technopolymer |
| Medium: | Compressed air, vacuum, water |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø6 |
| Port size / Connection: | G 1/4" |
| Port size | Push-in connection: | Ø6 |
| Pressure range: | -0,9…20 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
A-55325-6-1/4
(HU) Dugaszolható Y-csatlakozó
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

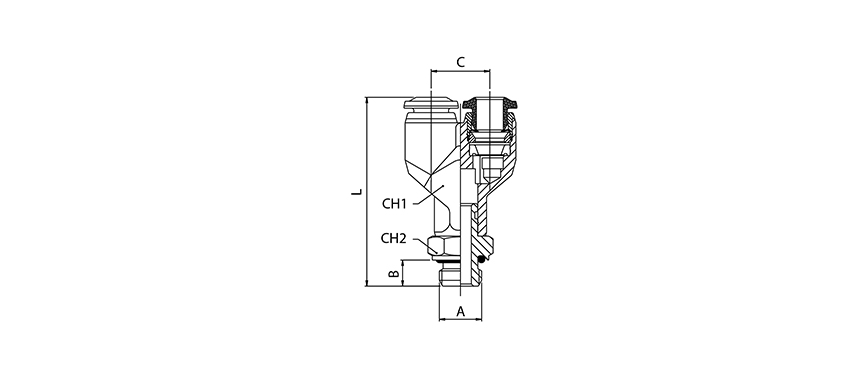

| Type number | Tube size | Port size A | B | C | L | CH1 | CH2 |
|---|---|---|---|---|---|---|---|
| A-55325-4-M5 | 4 | M 5 | 4 | 11 | 36,5 | 10 | 10 |
| A-55325-4-1/8 | 4 | G 1/8" | 6 | 11 | 38,5 | 10 | 13 |
| A-55325-4-1/4 | 4 | G 1/4" | 8 | 11 | 40,5 | 10 | 16 |
| A-55325-6-M5 | 6 | M 5 | 4 | 13,5 | 41,5 | 12 | 10 |
| A-55325-6-1/8 | 6 | G 1/8" | 6 | 13,5 | 43,5 | 12 | 13 |
| A-55325-6-1/4 | 6 | G 1/4" | 8 | 13,5 | 46,5 | 12 | 16 |
| A-55325-8-1/8 | 8 | G 1/8" | 6 | 15,5 | 47 | 14 | 13 |
| A-55325-8-1/4 | 8 | G 1/4" | 8 | 15,5 | 50 | 14 | 16 |
| A-55325-8-3/8 | 8 | G 3/8" | 9 | 15,5 | 52 | 14 | 20 |
| A-55325-10-1/4 | 10 | G 1/4" | 8 | 19 | 59,5 | 17 | 16 |
| A-55325-10-3/8 | 10 | G 3/8" | 9 | 19 | 59,5 | 17 | 20 |
| A-55325-10-1/2 | 10 | G 1/2" | 10 | 19 | 62 | 17 | 24 |
| A-55325-12-3/8 | 12 | G 3/8" | 9 | 22 | 68,5 | 20 | 20 |
| A-55325-12-1/2 | 12 | G 1/2" | 10 | 22 | 71 | 20 | 24 |
