A-55345-4-1/4
(HU) Dugaszolható egyenes elosztó-csatlakozó
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Technopolymer |
| Material retaining ring: | Stainless steel |
| Material seals: | NBR |
| Material support ring: | Technopolymer |
| Medium: | Compressed air, vacuum, water |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø4 |
| Port size / Connection: | G 1/4" |
| Port size | Push-in connection: | Ø4 |
| Pressure range: | -0,9…20 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
A-55345-4-1/4
(HU) Dugaszolható egyenes elosztó-csatlakozó
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

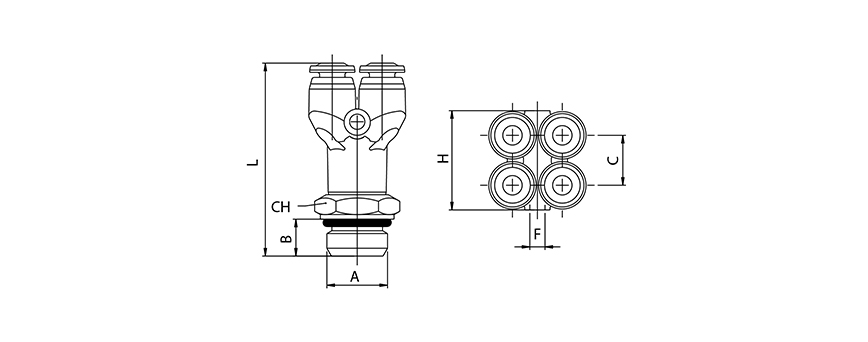

| Type number | Tube size | Port size A | B | C | L | H | CH | F |
|---|---|---|---|---|---|---|---|---|
| A-55345-4-1/8 | 4 | G 1/8" | 6 | 10,8 | 40 | 21,5 | 13 | 3,3 |
| A-55345-4-1/4 | 4 | G 1/4" | 8 | 10,8 | 42 | 21,5 | 16 | 3,3 |
| A-55345-6-1/8 | 6 | G 1/8" | 6 | 13,3 | 47 | 26,8 | 13 | 3,3 |
| A-55345-6-1/4 | 6 | G 1/4" | 8 | 13,3 | 49 | 26,8 | 16 | 3,3 |
