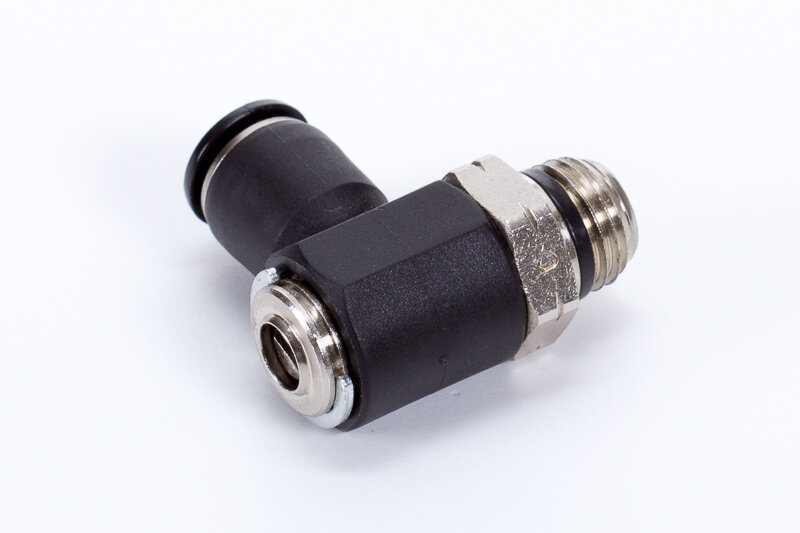

A-55910-5-1/4
(HU) Sarok fojtó-visszacsapó szelep, bemenő levegő fojtva - szelepbe
You can add comments on the request summary page.
| Air flow rate (P1=6 bar, ΔP=1 bar): | max. 410 l/min |
|---|---|
| Kivitel: | menetes |
| Material seals: | NBR |
| Medium: | Compressed air |
| Operating pressure: | 1…10 bar |
| Port size / Connection: | G 1/4" |
| Port size | Push-in connection: | Ø5 |
| Pressure range: | 1…10 bar |
| Temperature range: | -20°C…+80°C |
A-55910-5-1/4
(HU) Sarok fojtó-visszacsapó szelep, bemenő levegő fojtva - szelepbe
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Operating pressure | Port size / Connection | Port size | Push-in connection | Options |
|---|

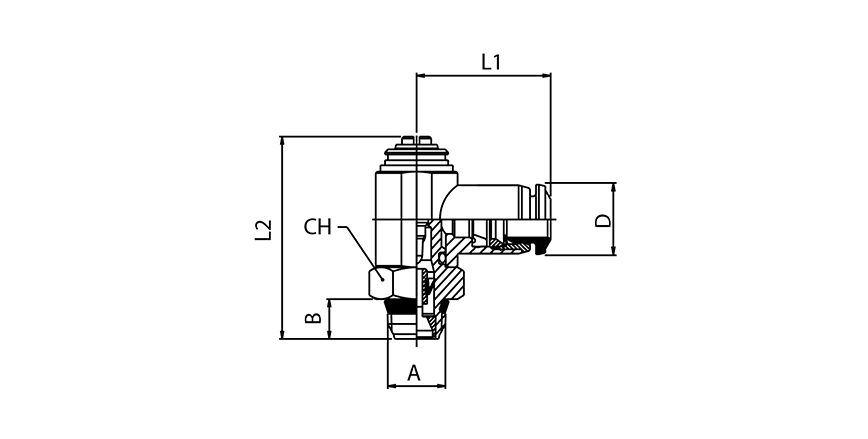

| Type number | Tube size | Port size A | B | L1 | L2 | CH | D |
|---|---|---|---|---|---|---|---|
| A-55910-4-M5 | 4 | M 5 | 5,5 | 19,5 | 29,5 | 8 | 10 |
| A-55910-4-1/8 | 4 | G 1/8" | 5,5 | 21,5 | 31 | 14 | 10 |
| A-55910-5-M5 | 5 | M 5 | 5,5 | 20,5 | 29,5 | 8 | 12,5 |
| A-55910-5-1/8 | 5 | G 1/8" | 5,5 | 22,5 | 31 | 14 | 12,5 |
| A-55910-5-1/4 | 5 | G 1/4" | 7 | 25 | 36,5 | 17 | 12,5 |
| A-55910-6-M5 | 6 | M 5 | 5,5 | 21 | 29,5 | 8 | 12,5 |
| A-55910-6-1/8 | 6 | G 1/8" | 5,5 | 23 | 31 | 14 | 12,5 |
| A-55910-6-1/4 | 6 | G 1/4" | 7 | 25,5 | 36,5 | 17 | 12,5 |
| A-55910-8-1/8 | 8 | G 1/8" | 5,5 | 23,5 | 31 | 14 | 14 |
| A-55910-8-1/4 | 8 | G 1/4" | 7 | 26 | 36,5 | 17 | 14 |
| A-55910-8-3/8 | 8 | G 3/8" | 8,5 | 27,5 | 42,5 | 20 | 14 |
| A-55910-10-3/8 | 10 | G 3/8" | 8,5 | 30,5 | 42,5 | 20 | 17 |
| A-55910-12-3/8 | 12 | G 3/8" | 8,5 | 32,5 | 42,5 | 20 | 21,5 |
| A-55910-12-1/2 | 12 | G 1/2" | 10 | 35 | 47 | 24 | 21,5 |
