A-57050-5
(HU) Dugaszolható falonátvezető összekötő - fém kivitel
You can add comments on the request summary page.
| Kivitel: | összekötő |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Technopolymer |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | Technopolymer |
| Medium: | Compressed air, vacuum, water,steam |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø5 |
| Port size | Push-in connection: | Ø5 |
| Pressure range: | -0,9…20 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
A-57050-5
(HU) Dugaszolható falonátvezető összekötő - fém kivitel
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

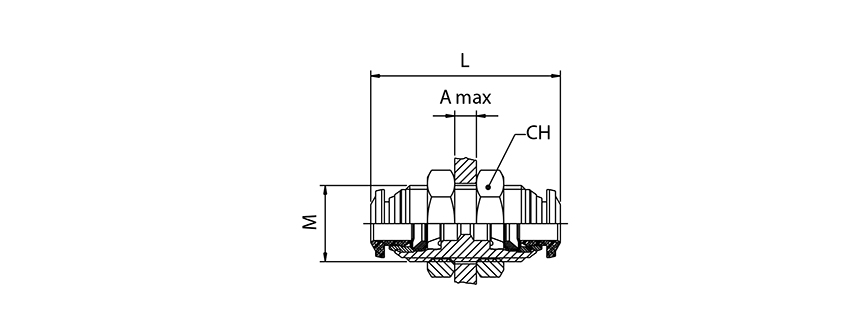

| Type number | Tube size | M | L | CH | A max. |
|---|---|---|---|---|---|
| A-57050-4 | 4 | M 12 x 1 | 31,5 | 17 | 7 |
| A-57050-5 | 5 | M 14 x 1 | 33 | 17 | 7 |
| A-57050-6 | 6 | M 14 x 1 | 35 | 17 | 9,5 |
| A-57050-8 | 8 | M 16 x 1 | 37 | 19 | 10,5 |
| A-57050-10 | 10 | M 20 x 1 | 43 | 24 | 12,5 |
| A-57050-12 | 12 | M 22 x 1 | 48 | 26 | 16,5 |
