A-57116-8-1/4
(HU) Dugaszolható könyök csatlakozó - fém kivitel
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Technopolymer |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | Technopolymer |
| Medium: | Compressed air, vacuum, water,steam |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø8 |
| Port size / Connection: | G 1/4" |
| Port size | Push-in connection: | Ø8 |
| Pressure range: | -0,9…20 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
A-57116-8-1/4
(HU) Dugaszolható könyök csatlakozó - fém kivitel
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

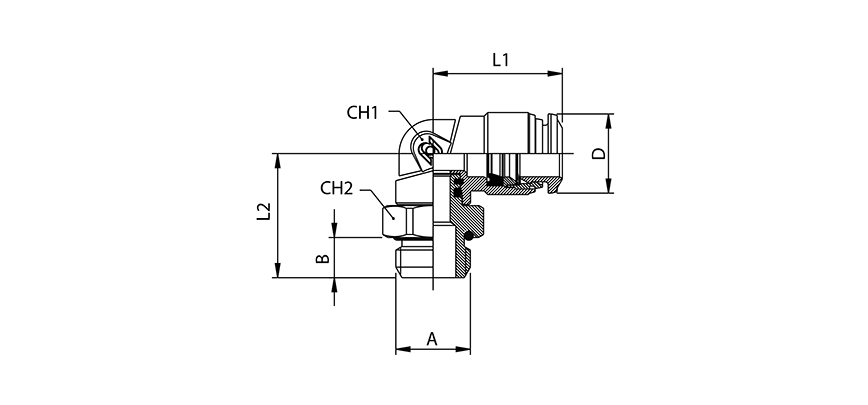

| Type number | Tube size | Port size A | B | L1 | L2 | CH1 | CH2 | D |
|---|---|---|---|---|---|---|---|---|
| A-57116-4-M5 | 4 | M 5 | 3,5 | 18 | 17,5 | 9 | 8 | 10 |
| A-57116-4-1/8 | 4 | G 1/8" | 5,5 | 18 | 18 | 9 | 13 | 10 |
| A-57116-4-1/4 | 4 | G 1/4" | 7 | 18 | 18 | 9 | 16 | 10 |
| A-57116-5-M5 | 5 | M 5 | 3,5 | 20 | 20 | 11 | 11 | 12,5 |
| A-57116-5-1/8 | 5 | G 1/8" | 5,5 | 20 | 20 | 11 | 13 | 12,5 |
| A-57116-6-M5 | 6 | M 5 | 3,5 | 21 | 20 | 11 | 11 | 12,5 |
| A-57116-6-1/8 | 6 | G 1/8" | 5,5 | 21 | 20 | 11 | 13 | 12,5 |
| A-57116-6-1/4 | 6 | G 1/4" | 7 | 21 | 21,5 | 11 | 16 | 12,5 |
| A-57116-8-1/8 | 8 | G 1/8" | 5,5 | 22,5 | 21 | 12 | 13 | 14,5 |
| A-57116-8-1/4 | 8 | G 1/4" | 7 | 22,5 | 21,5 | 12 | 16 | 14,5 |
| A-57116-8-3/8 | 8 | G 3/8" | 8 | 22,5 | 23,5 | 12 | 20 | 14,5 |
| A-57116-8-1/2 | 8 | G 1/2" | 9,5 | 22,5 | 25 | 12 | 25 | 14,5 |
| A-57116-10-1/4 | 10 | G 1/4" | 7 | 26,5 | 25,5 | 14 | 16 | 17,5 |
| A-57116-10-3/8 | 10 | G 3/8" | 8 | 26,5 | 25 | 14 | 20 | 17,5 |
| A-57116-10-1/2 | 10 | G 1/2" | 9,5 | 26,5 | 26,5 | 14 | 25 | 17,5 |
| A-57116-12-1/4 | 12 | G 1/4" | 8 | 31,5 | 27,5 | 16 | 20 | 21,5 |
| A-57116-12-3/8 | 12 | G 3/8" | 8 | 31,5 | 27 | 16 | 20 | 21,5 |
| A-57116-12-1/2 | 12 | G 1/2" | 9,5 | 31,5 | 28,5 | 16 | 25 | 21,5 |
| A-57116-14-3/8 | 14 | G 3/8" | 8 | 31,5 | 27,5 | 16 | 20 | 21,5 |
| A-57116-14-1/2 | 14 | G 1/2" | 9,5 | 31,5 | 29 | 16 | 25 | 21,5 |
| A-57116-6-M12x1 | 6 | M 12 x 1 | 7,5 | 20 | 22 | 11 | 16 | 12,5 |
| A-57116-6-M12x1,25 | 6 | M 12 x 1,25 | 7,5 | 20 | 22 | 11 | 16 | 12,5 |
| A-57116-6-M12x1,5 | 6 | M 12 x 1,5 | 7,5 | 20 | 22 | 11 | 16 | 12,5 |
| A-57116-8-M12x1,5 | 8 | M 12 x 1,5 | 7,5 | 22,5 | 22 | 12 | 16 | 14,5 |
