A-57310-8
(HU) Dugaszolható Y-összekötő - fém kivitel
You can add comments on the request summary page.
| Kivitel: | összekötő |
|---|---|
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Technopolymer |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | Technopolymer |
| Medium: | Compressed air, vacuum, water,steam |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø8 |
| Port size | Push-in connection: | Ø8 |
| Pressure range: | -0,9…20 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
A-57310-8
(HU) Dugaszolható Y-összekötő - fém kivitel
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

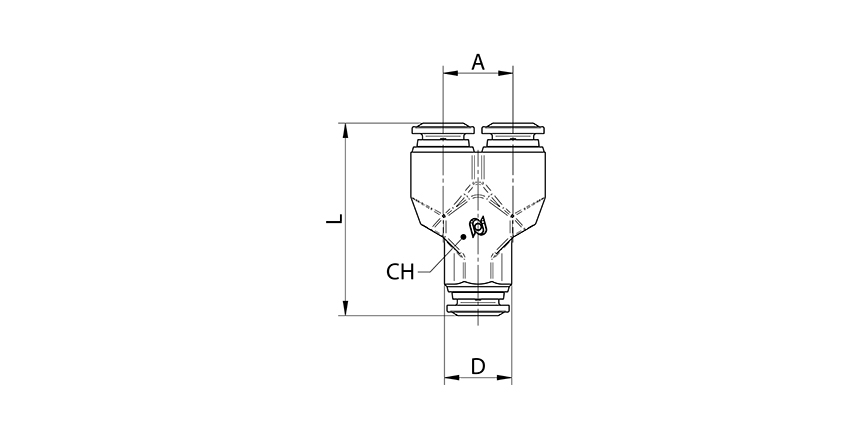

| Type number | Tube size | A | L | CH | D |
|---|---|---|---|---|---|
| A-57310-4 | 4 | 11 | 32 | 11 | 10 |
| A-57310-5 | 5 | 13,5 | 35 | 13 | 12,5 |
| A-57310-6 | 6 | 13,5 | 36,5 | 13 | 12,5 |
| A-57310-8 | 8 | 15,5 | 41 | 15 | 14 |
| A-57310-10 | 10 | 18,5 | 48 | 18 | 17 |
