A-58100-6-M6X1
A-58100-6-M6X1
You can add comments on the request summary page.
A-58100-6-M6X1
A-58100-6-M6X1
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

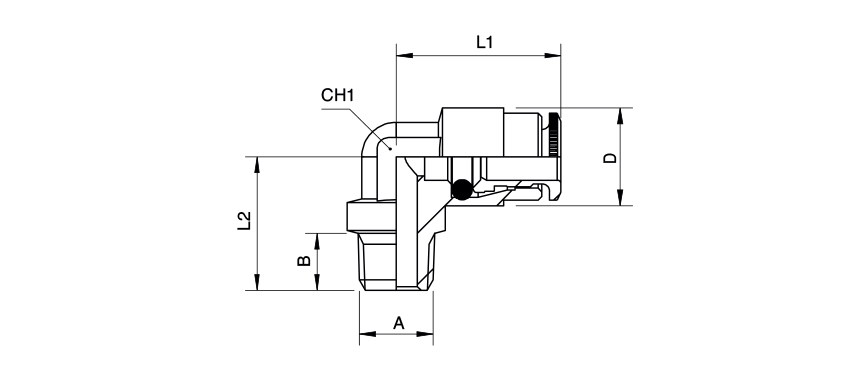

| Type number | Tube size | Port size A | B | L1 | L2 | CH1 | D |
|---|---|---|---|---|---|---|---|
| A-58100-4-M6x1 | Ø4 | M 6 x 1 | 6 | 18 | 15 | 8 | 10,5 |
| A-58100-4-M8x1 | Ø4 | M 8 x 1 | 6 | 18 | 15 | 8 | 10,5 |
| A-58100-4-M10x1 | Ø4 | M 10 x 1 | 6,5 | 18 | 15 | 8 | 10,5 |
| A-58100-6-M6x1 | Ø6 | M 6 x 1 | 6 | 21 | 17 | 10 | 13 |
| A-58100-6-M8x1 | Ø6 | M 8 x 1 | 6 | 21 | 17 | 10 | 13 |
| A-58100-6-M10x1 | Ø6 | M 10 x 1 | 6,5 | 21 | 17 | 10 | 13 |
