A-62310-1/8-1/4
(HU) Redukáló karmantyú - BB - INOX
You can add comments on the request summary page.
| Kivitel: | menetes |
|---|---|
| Material: | Stainless steel |
| Material seals: | Without seal |
| Medium: | Compressed air, liquids |
| Operating pressure: | 0…140 bar |
| Port size / Connection: | G 1/8" |
| Port size | Push-in connection: | G 1/4" |
| Pressure range: | 0…140 bar |
| Temperature range: | -110°C…+300°C |
A-62310-1/8-1/4
(HU) Redukáló karmantyú - BB - INOX
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

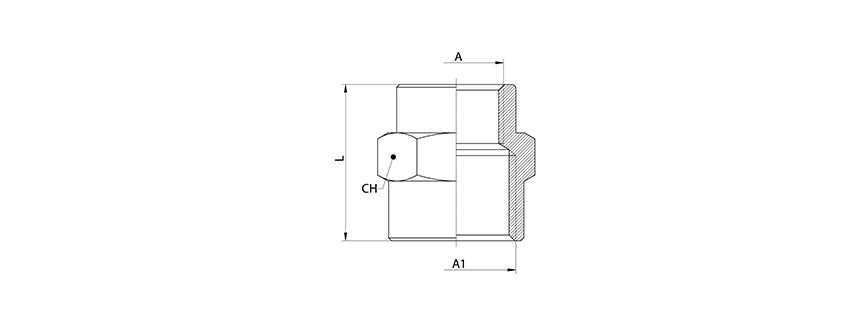

| Type number | Port size A | Port size A1 | L | CH |
|---|---|---|---|---|
| A-62310-1/8-1/4 | G 1/8" | G 1/4" | 19 | 17 |
| A-62310-1/4-3/8 | G 1/4" | G 3/8" | 23 | 22 |
| A-62310-3/8-1/2 | G 3/8" | G 1/2" | 27,5 | 24 |
| A-62310-1/2-3/4 | G 1/2" | G 3/4" | 30 | 30 |
