DW 40
(HU) Csapágybak 90 °-os
You can add comments on the request summary page.
| ATEX zone: | II 2 GD c T6 -20°C<Tamb<80°C |
|---|---|
| Diameter: | Ø32 |
| Material: | Aluminum |
DW 40
(HU) Csapágybak 90 °-os
Please register here to access downloads for data sheets and 3D models.
| Product number | Diameter | Options |
|---|

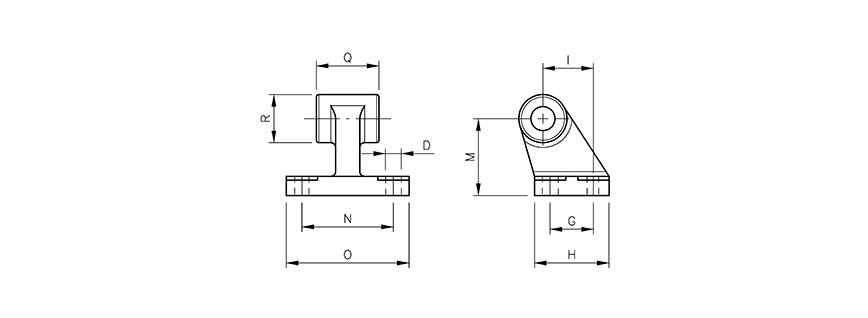

| Type number | Diameter | D | G | H | I | M | N | O | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|
| DW 32 | Ø 32 | 6,6 | 18 | 31 | 21 | 32 | 38 | 51 | 26 | 20 |
| DW 40 | Ø 40 | 6,6 | 22 | 35 | 24 | 36 | 41 | 54 | 28 | 22 |
| DW 50 | Ø 50 | 9 | 30 | 45 | 33 | 45 | 50 | 65 | 32 | 26 |
| DW 63 | Ø 63 | 9 | 35 | 50 | 37 | 50 | 52 | 67 | 40 | 30 |
| DW 80 | Ø 80 | 11 | 40 | 60 | 47 | 63 | 66 | 86 | 50 | 30 |
| DW 100 | Ø 100 | 11 | 50 | 70 | 55 | 71 | 76 | 96 | 60 | 38 |
| DW 125 | Ø 125 | 14 | 60 | 90 | 70 | 90 | 94 | 124 | 70 | 45 |
