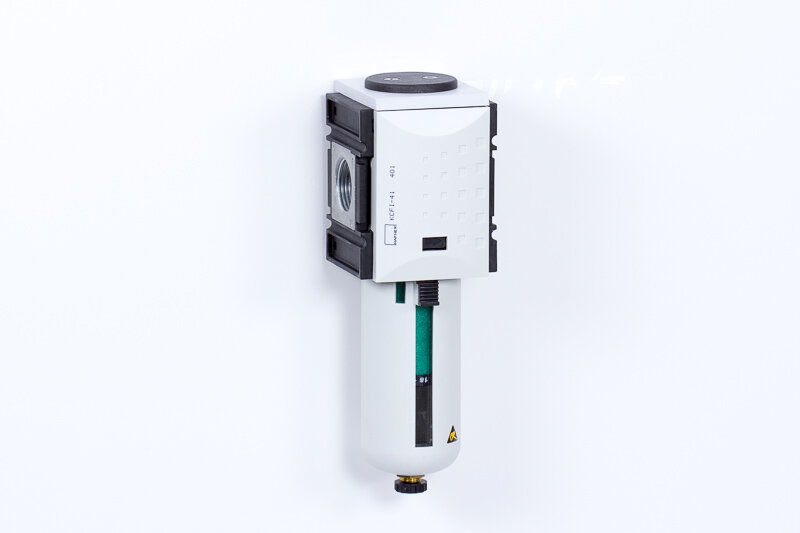

KCFI-41 HA (HU) Finomszűrő egység
(HU) Finomszűrő egység - 16 bar - 0,01 mikron (FS-4)
You can add comments on the request summary page.
| Air flow rate (P1=6 bar, ΔP=1 bar): | 1500 l/min |
|---|---|
| Condensate drain: | Semi-automatic drain |
| Filter fineness: | 0,01 micron |
| Inlet operating pressure: | 16 bar |
| Material body: | Plastic |
| Material diaphragm: | NBR |
| Material seals: | NBR |
| Medium: | Compressed air |
| Port size / Connection: | G 1" |
| Residual oil content: | 0,01 mg/m3 |
| Temperature range: | -10°C…+50°C |

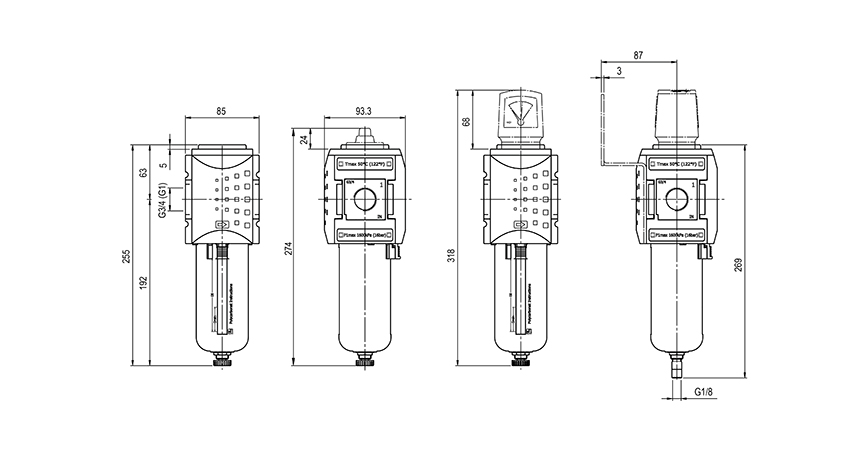

| Unit width: | 85 mm |
KCFI-41 HA
(HU) Finomszűrő egység - 16 bar - 0,01 mikron (FS-4)
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Condensate drain | Filter fineness | Port size / Connection | Options |
|---|
