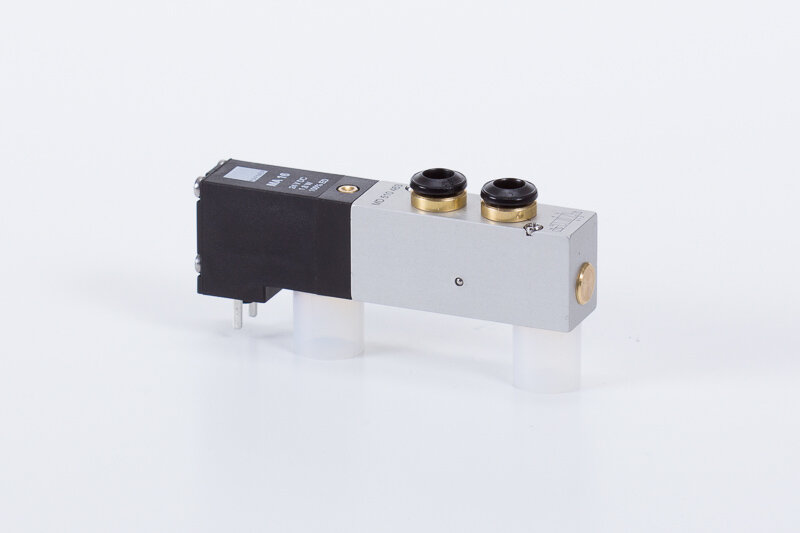

MD 510 463 T - 24 DC (HU) 5/2-es elektromos vezérlésű sziget szelep, monostabil
(HU) 5/2-es elektromos vezérlésű sziget szelep, monostabil - pif 6mm
You can add comments on the request summary page.
| Actuation: | Electrically actuated |
|---|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 450 l/min |
| Function: | Monostable |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | Valve for manifold / valve terminal mounting |
| Operating pressure: | 3…10 bar |
| Port orientation: | On two sides |
| Port size / Connection: | 6 mm push-in |
| Power consumption: | 1,8 W / 3 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Voltage: | 24 V DC |
| Ways: | 5/2-ways |
MD 510 463 T - 24 DC
(HU) 5/2-es elektromos vezérlésű sziget szelep, monostabil - pif 6mm
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
