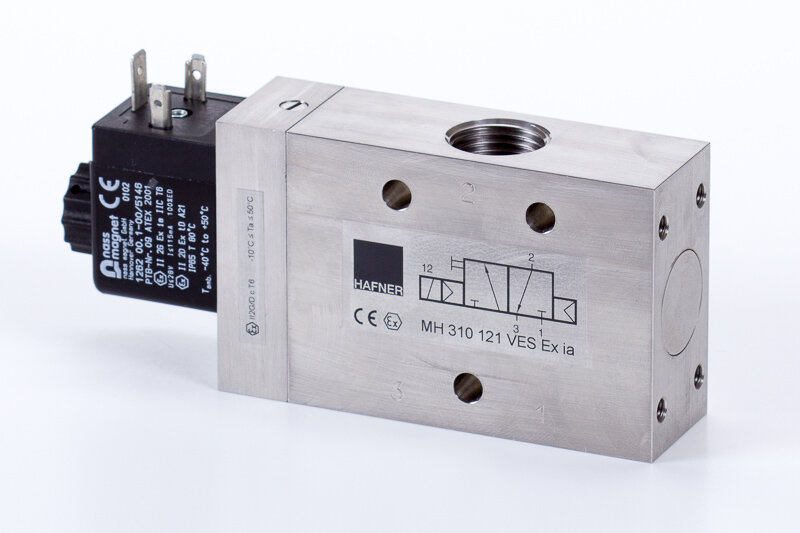

MH 310 121 VES EX IA MH 310 121 VES EX IA
MH 310 121 VES EX IA
Coil and electric connector is not included
You can add comments on the request summary page.
| ATEX zone: | II 2 G Ex h IIC T6 Gb -10°C ≤Ta ≤ +50°C | II 2 D Ex h IIIC |
|---|---|
| Actuation: | Electrically actuated |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 3000 l/min |
| Function: | Monostable |
| Ignition protection type: | Ex ia |
| Material body: | Stainless steel |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 1…8 bar |
| Port orientation: | On two sides |
| Port size / Connection: | G 1/2" |
| Power consumption: | 3 W / 5 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Ways: | 3/2-ways |
MH 310 121 VES EX IA
MH 310 121 VES EX IA
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Function | Operating pressure | Port size / Connection | Power consumption | Options |
|---|
