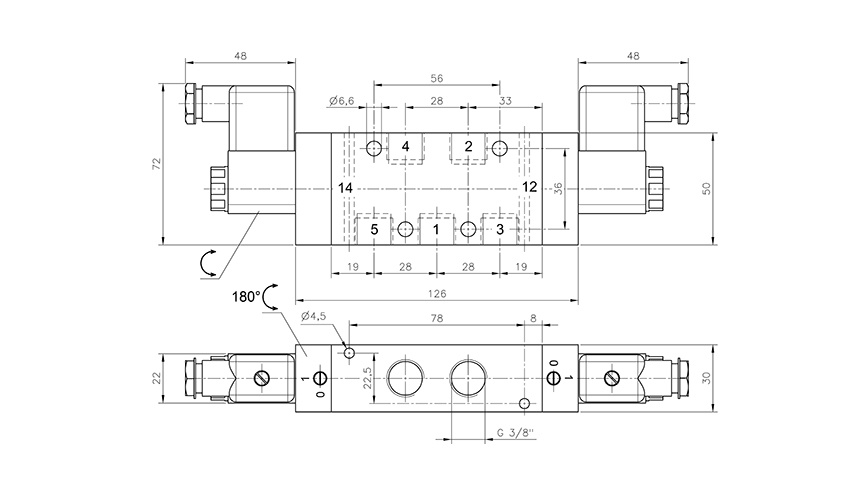

MH 520 101 G
(HU) 5/2-es elektromos vezérlésű szelep, G-széria, bistabil - G3/8"
Coil and electric connector is not included
You can add comments on the request summary page.
| Actuation: | Electrically actuated |
|---|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 2250 l/min |
| Function: | Bistable |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 1,5…10 bar |
| Port orientation: | On two sides |
| Port size / Connection: | G 3/8" |
| Power consumption: | 3 W / 5 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/2-ways |
MH 520 101 G
(HU) 5/2-es elektromos vezérlésű szelep, G-széria, bistabil - G3/8"
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
