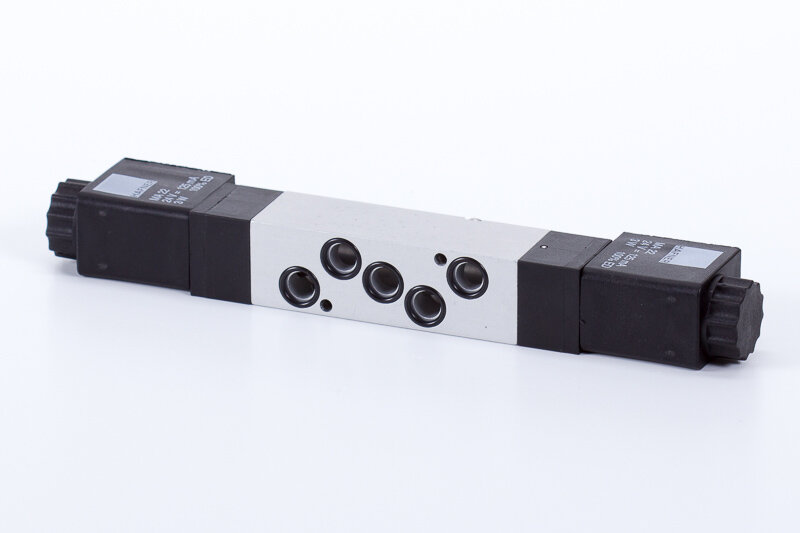

MH 531 704 TT
(HU) 5/3-as elekt. vezérlésű alaplapos szelep, középáll. zárt - DN7 - hidegálló
Coil and electric connector is not included
You can add comments on the request summary page.
| Actuation: | Electrically actuated |
|---|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 1250 l/min |
| Function: | 3-position, centre closed |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | Valve for manifold / valve terminal mounting |
| Operating pressure: | 3…10 bar |
| Orifice size: | DN 7 |
| Port orientation: | On the bottom for manifold assembly |
| Port size / Connection: | For manifolds |
| Power consumption: | 3 W / 5 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -50...+50°C |
| Ways: | 5/3-ways |
MH 531 704 TT
(HU) 5/3-as elekt. vezérlésű alaplapos szelep, középáll. zárt - DN7 - hidegálló

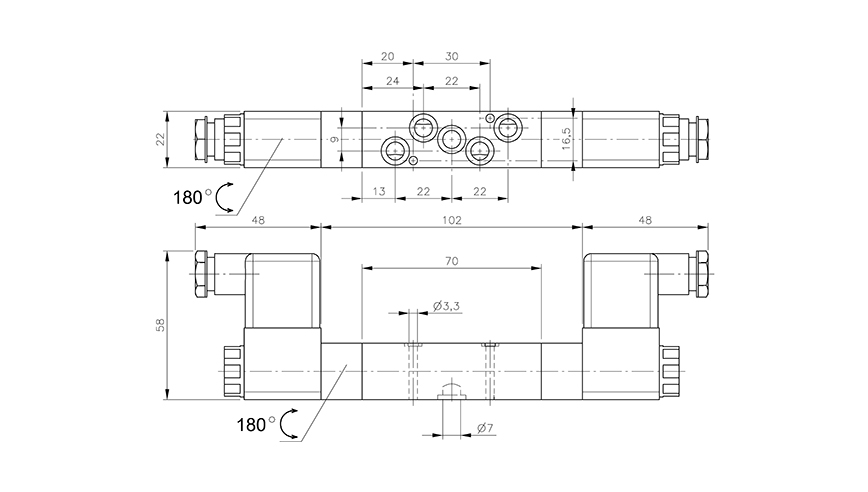

Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Function | Operating pressure | Port size / Connection | Power consumption | Options |
|---|
