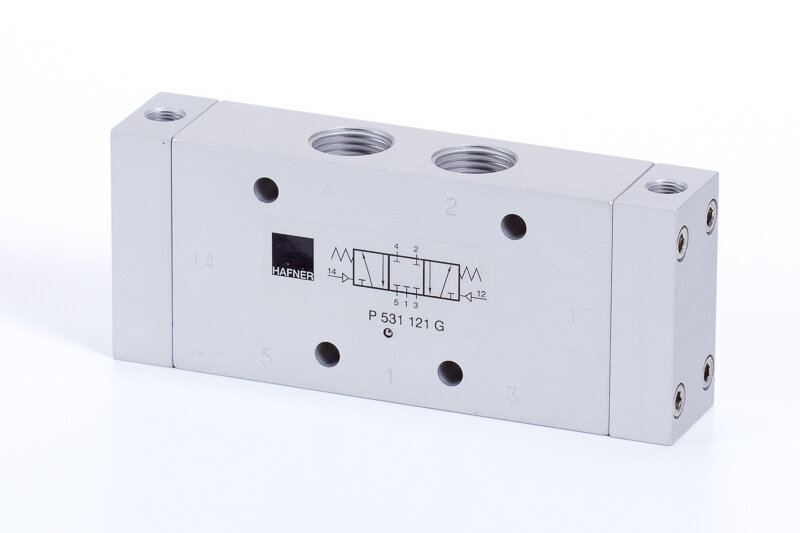

P 531 121 G
(HU) 5/3-as pneumatikus vezérlésű szelep, G-széria, középáll. zárt - G1/2"
You can add comments on the request summary page.
| Actuation: | Pneumatically actuated |
|---|---|
| Actuation pressure: | 3…10 bar |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 3000 l/min |
| Function: | 3-position, centre closed |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | G-series: in-line installationand manifold mounting possibl |
| Operating pressure: | 1…10 bar |
| Port orientation: | On two sides |
| Port size: | G 1/8" |
| Port size / Connection: | G 1/2" |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/3-ways |
P 531 121 G
(HU) 5/3-as pneumatikus vezérlésű szelep, G-széria, középáll. zárt - G1/2"
