RIMA 16/50
RIMA 16/50
RIMA 16/50
RIMA 16/50
RIMA 16/50
RIMA 16/50

RIMA 16/50

(HU) ISO 6432 körprofil henger

Custom cylinder length (optional)
The value must be between 5 and 1000.

You can add comments on the request summary page.

Cushioning: Built-in cushioning rings
Diameter: Ø16
ISO standard: ISO 6432
Material body: Stainless steel
Material guide bushing: Sintered bronze
Material heads: Anodized aluminum
Material piston: Brass
Material piston rod: Stainless steel (AISI 304)
Material seals: Polyurethane, NBR
Medium: Compressed air
Operating pressure: 1…10 bar
Piston rod diameter: Ø6 mm
Piston rod thread: M6 - male thread
Piston type: Magnetic
Port size / Connection: M5
Stroke: 50 mm
Temperature range: -20°C…+80°C
Thrust force: 105 N
Traction force: 96 N
Ways: Double acting
RIMA 16/50
(HU) ISO 6432 körprofil henger
Please register here to access downloads for data sheets and 3D models.

Product number Diameter Material seals Piston rod diameter Piston rod thread Port size / Connection Stroke Options
RIMA 16/10 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 10 mm
RIMA 16/25 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 25 mm
RIMA 16/80 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 80 mm
RIMA 16/100 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 100 mm
RIMA 16/125 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 125 mm
RIMA 16/160 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 160 mm
RIMA 16/200 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 200 mm
RIMA 16/250 Ø16 Polyurethane, NBR Ø6 mm M6 - male thread M5 250 mm
RIMA 20/10 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 10 mm
RIMA 20/25 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 25 mm
RIMA 20/50 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 50 mm
RIMA 20/80 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 80 mm
RIMA 20/100 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 100 mm
RIMA 20/125 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 125 mm
RIMA 20/160 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 160 mm
RIMA 20/200 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 200 mm
RIMA 20/250 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 250 mm
RIMA 20/320 Ø20 Polyurethane, NBR Ø8 mm M8 - male thread G 1/8" 320 mm
RIMA 25/10 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 10 mm
RIMA 25/25 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 25 mm
RIMA 25/50 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 50 mm
RIMA 25/80 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 80 mm
RIMA 25/100 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 100 mm
RIMA 25/125 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 125 mm
RIMA 25/160 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 160 mm
RIMA 25/200 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 200 mm
RIMA 25/250 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 250 mm
RIMA 25/320 Ø25 Polyurethane, NBR Ø10 mm M10 x 1,25 - male thread G 1/8" 320 mm

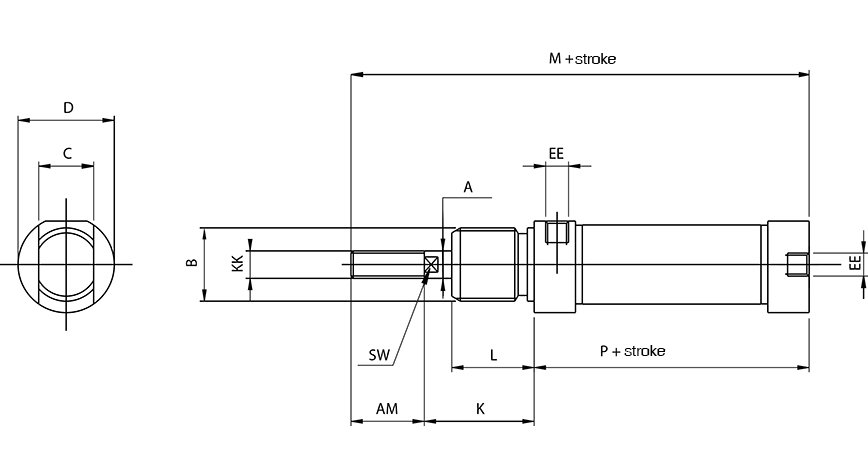

Type number Ø [mm] A B C D K L M P AM EE KK SW
RIMA 16/... Ø 16 6 M 16 x 1,5 12 21 22 18 109 53 16 M 5 M 6 5
RIMA 20/... Ø 20 8 M 22 x 1,5 16 27 24 20 131 67 20 G 1/8" M 8 7
RIMA 25/... Ø 25 10 M 22 x 1,5 16 30 28 22 140 68 22 G 1/8" M 10 x 1,25 9
