UV-M27X2
UV-M27X2
You can add comments on the request summary page.
| ATEX zone: | II 2 GD c T6 -20°C<Tamb<80°C |
|---|---|
| Material: | Steel |
| Thread size: | M20x1,5 |
UV-M27X2
UV-M27X2
Please register here to access downloads for data sheets and 3D models.

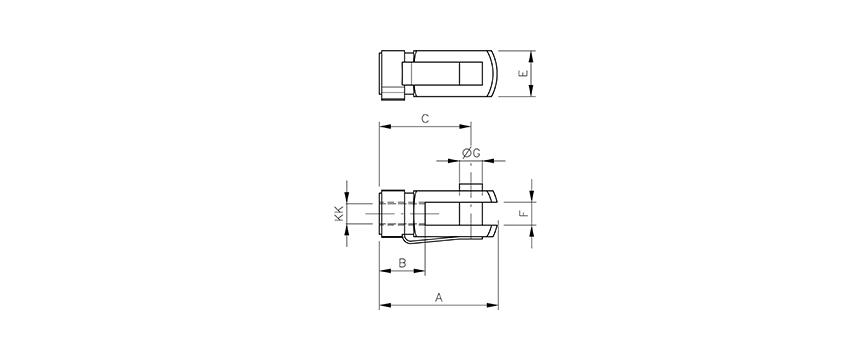

| Product number | Thread size | Options |
|---|
| Type number | KK | A | B | C | E | F | G |
|---|---|---|---|---|---|---|---|
| UV-M4 | M 4 | 21 | 8 | 16 | 8 | 4 | 4 |
| UV-M6 | M 6 | 31 | 12 | 24 | 12 | 6 | 6 |
| UV-M8 | M 8 | 42 | 16 | 32 | 16 | 8 | 8 |
| UV-M10x1,25 | M 10 x 1,25 | 52 | 20 | 40 | 20 | 10 | 10 |
| UV-M12x1,25 | M 12 x 1,25 | 62 | 24 | 48 | 24 | 12 | 12 |
| UV-M16x1,5 | M 16 x 1,5 | 83 | 32 | 64 | 32 | 16 | 16 |
| UV-M20x1,5 | M 20 x 1,5 | 105 | 40 | 80 | 40 | 20 | 20 |
| UV-M27x2 | M 27 x 2 | 148 | 56 | 110 | 55 | 30 | 30 |
