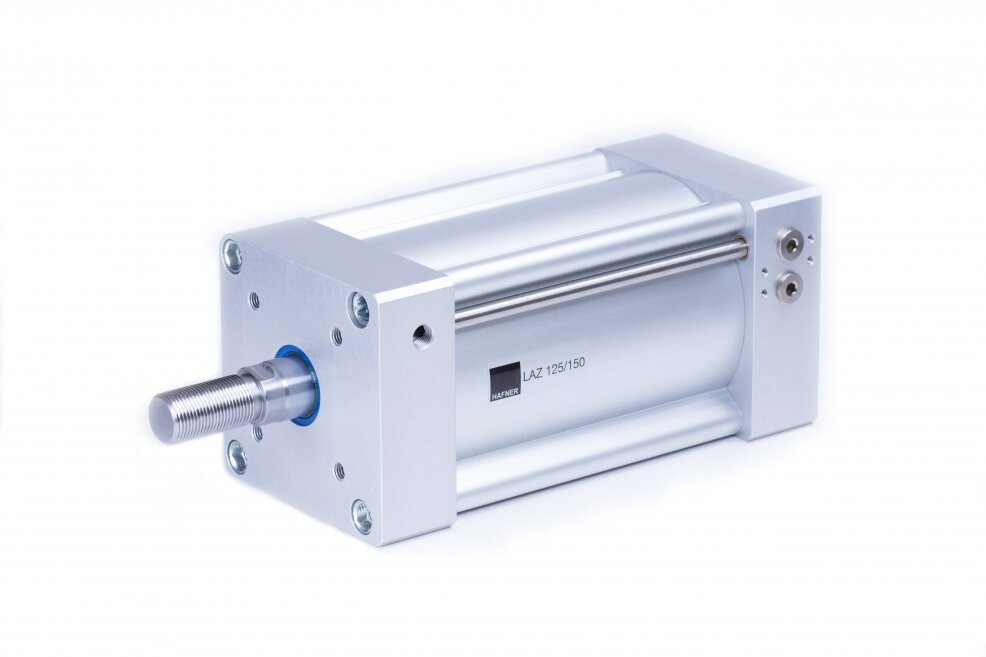

LAZ 100/80
LAZ 100/80
LAZ 100/80
LAZ 100/80
LAZ 100/80
LAZ 100/80

LAZ 100/80

(HU) LAZ henger késtolózárakhoz

You can add comments on the request summary page.

Cushioning: Built-in cushioning rings
Diameter: Ø100
Material body: Anodized aluminum
Material heads: Anodized aluminum
Material piston: Aluminum
Material piston rod: Stainless steel (AISI 304)
Material seals: Polyurethane, NBR
Medium: Compressed air
Operating pressure: 1…10 bar
Piston rod thread: M16 x 1,5 - male thread
Piston type: Magnetic
Port size / Connection: G 1/4"
Stroke: 80 mm
Temperature range: -20°C…+80°C
Thrust force: 4710 N
Traction force: 4521 N
Ways: Double acting
LAZ 100/80
(HU) LAZ henger késtolózárakhoz
Please register here to access downloads for data sheets and 3D models.

Product number Diameter Material seals Piston rod thread Port size / Connection Stroke Options
LAZ 80/25 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 25 mm
LAZ 80/50 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 50 mm
LAZ 80/80 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 80 mm
LAZ 80/100 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 100 mm
LAZ 80/125 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 125 mm
LAZ 80/160 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 160 mm
LAZ 80/200 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 200 mm
LAZ 80/250 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 250 mm
LAZ 80/320 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 320 mm
LAZ 80/400 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 400 mm
LAZ 80/500 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 500 mm
LAZ 80/600 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 600 mm
LAZ 80/700 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 700 mm
LAZ 80/800 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 800 mm
LAZ 80/900 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 900 mm
LAZ 80/1000 Ø80 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 1000 mm
LAZ 100/25 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 25 mm
LAZ 100/50 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 50 mm
LAZ 100/100 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 100 mm
LAZ 100/125 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 125 mm
LAZ 100/160 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 160 mm
LAZ 100/200 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 200 mm
LAZ 100/250 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 250 mm
LAZ 100/320 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 320 mm
LAZ 100/400 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 400 mm
LAZ 100/500 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 500 mm
LAZ 100/600 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 600 mm
LAZ 100/700 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 700 mm
LAZ 100/800 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 800 mm
LAZ 100/900 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 900 mm
LAZ 100/1000 Ø100 Polyurethane, NBR M16 x 1,5 - male thread G 1/4" 1000 mm
LAZ 125/25 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 25 mm
LAZ 125/50 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 50 mm
LAZ 125/80 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 80 mm
LAZ 125/100 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 100 mm
LAZ 125/125 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 125 mm
LAZ 125/160 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 160 mm
LAZ 125/200 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 200 mm
LAZ 125/250 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 250 mm
LAZ 125/320 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 320 mm
LAZ 125/400 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 400 mm
LAZ 125/500 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 500 mm
LAZ 125/600 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 600 mm
LAZ 125/700 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 700 mm
LAZ 125/800 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 800 mm
LAZ 125/900 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 900 mm
LAZ 125/1000 Ø125 Polyurethane, NBR M27 x 2 - male thread G 1/4" 1000 mm
LAZ 160/25 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 25 mm
LAZ 160/50 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 50 mm
LAZ 160/80 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 80 mm
LAZ 160/100 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 100 mm
LAZ 160/125 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 125 mm
LAZ 160/160 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 160 mm
LAZ 160/200 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 200 mm
LAZ 160/250 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 250 mm
LAZ 160/320 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 320 mm
LAZ 160/400 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 400 mm
LAZ 160/500 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 500 mm
LAZ 160/600 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 600 mm
LAZ 160/700 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 700 mm
LAZ 160/800 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 800 mm
LAZ 160/900 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 900 mm
LAZ 160/1000 Ø160 Polyurethane, NBR M27 x 2 - male thread G 1/4" 1000 mm
LAZ 200/25 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 25 mm
LAZ 200/50 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 50 mm
LAZ 200/80 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 80 mm
LAZ 200/100 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 100 mm
LAZ 200/125 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 125 mm
LAZ 200/160 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 160 mm
LAZ 200/200 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 200 mm
LAZ 200/250 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 250 mm
LAZ 200/320 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 320 mm
LAZ 200/400 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 400 mm
LAZ 200/500 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 500 mm
LAZ 200/600 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 600 mm
LAZ 200/700 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 700 mm
LAZ 200/800 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 800 mm
LAZ 200/900 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 900 mm
LAZ 200/1000 Ø200 Polyurethane, NBR M36 x 2 - male thread G 1/2" 1000 mm
LAZ 250/25 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 25 mm
LAZ 250/50 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 50 mm
LAZ 250/80 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 80 mm
LAZ 250/100 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 100 mm
LAZ 250/125 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 125 mm
LAZ 250/160 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 160 mm
LAZ 250/200 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 200 mm
LAZ 250/250 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 250 mm
LAZ 250/320 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 320 mm
LAZ 250/400 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 400 mm
LAZ 250/500 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 500 mm
LAZ 250/600 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 600 mm
LAZ 250/700 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 700 mm
LAZ 250/800 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 800 mm
LAZ 250/900 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 900 mm
LAZ 250/1000 Ø250 Polyurethane, NBR M36 x 2 - male thread G 1/2" 1000 mm
LAZ 320/25 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 25 mm
LAZ 320/50 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 50 mm
LAZ 320/80 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 80 mm
LAZ 320/100 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 100 mm
LAZ 320/125 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 125 mm
LAZ 320/160 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 160 mm
LAZ 320/200 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 200 mm
LAZ 320/250 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 250 mm
LAZ 320/320 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 320 mm
LAZ 320/400 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 400 mm
LAZ 320/500 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 500 mm
LAZ 320/600 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 600 mm
LAZ 320/700 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 700 mm
LAZ 320/800 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 800 mm
LAZ 320/900 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 900 mm
LAZ 320/1000 Ø320 Polyurethane, NBR M36 x 2 - male thread G 1/2" 1000 mm

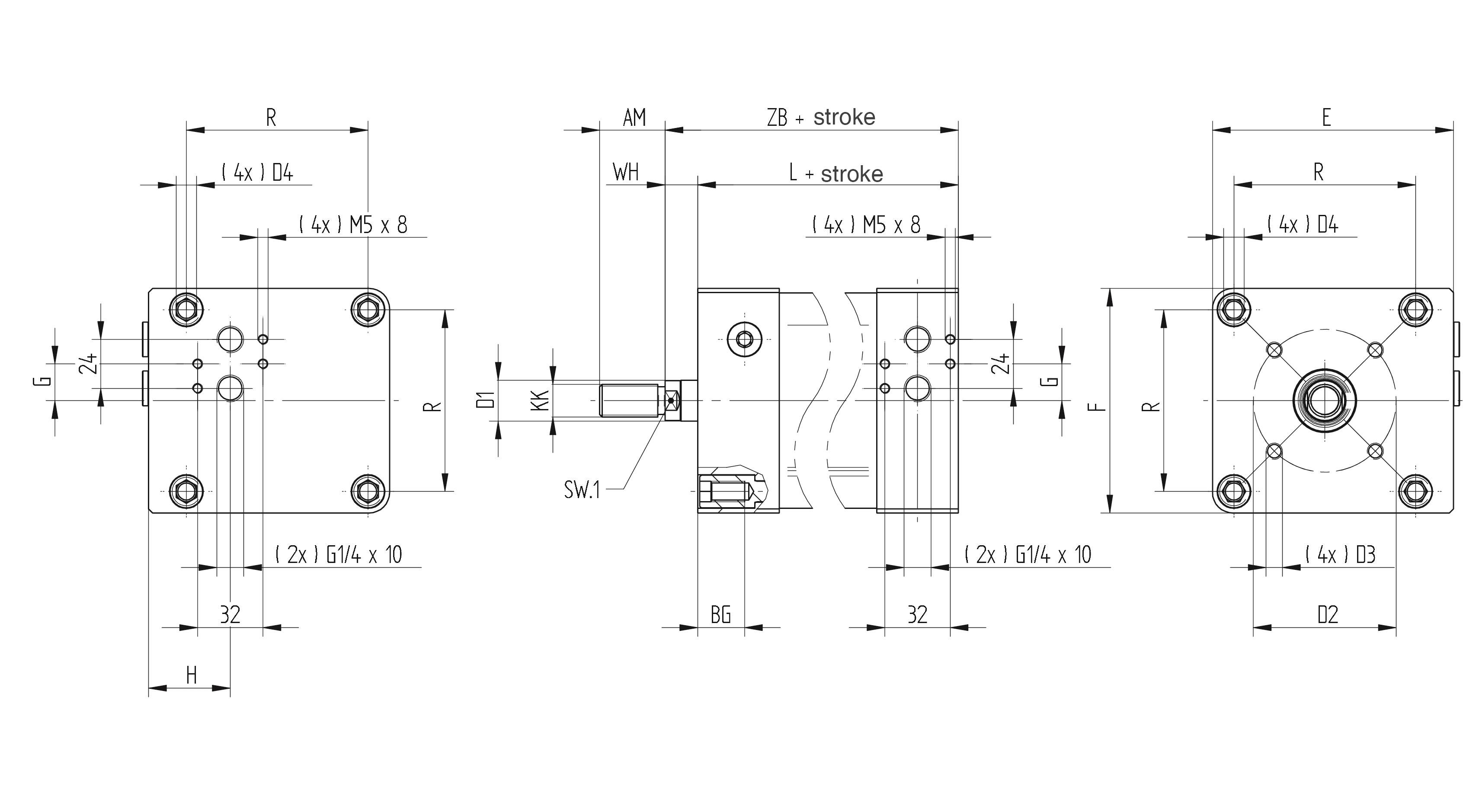

Type number Ø [mm] AM D1 KK SW.1 D2 D3 D4 BG R E F G H WH L ZB
LAZ 80/... Ø 80 32 Ø 20 M16x1,5 17 Ø 70 M8x15 M10 22 72 100 90 8 35 16 114 130
LAZ 100/... Ø 100 32 Ø 20 M16x1,5 17 Ø 70 M8x15 M10 22 89 118 110 18 40 16 118 134
LAZ 125/... Ø 125 54 Ø 32 M27x2 27 Ø 102 M10x18 M12 26 110 140 134 28 45 24 138 162
LAZ 160/... Ø 160 54 Ø 32 M27x2 27 Ø 102 M10x18 M16 22 140 174 174 32 60 24 123 147
